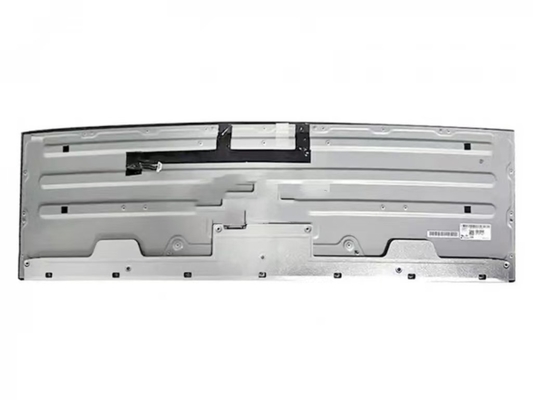

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 49" |
|---|---|---|---|
| Resolution: | 5120(RGB)×1440, DQHD 108PPI | Luminance: | 400 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM490DQ1-SSC1 | a-Si TFT-LCD , LCM | LM490DQ2 (SS)(C1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 49 inch (Native bar) | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 5120(RGB)×1440, DQHD | RGB Vertical Stripe | 0.078×0.234 mm | 0.234×0.234 mm [108PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 1198.08×336.96 mm | - | 1209.9×360.45 mm | 14.18 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Curved Display, R3800 | >3:1 (W : H) | Landscape type | 3-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 7.40/7.77Kgs (Typ./Max.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 93% | 100% | 86% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 95% | 69% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 1.16/1.45A (Typ./Max.) | 10.0V (Typ.) | 11.6/14.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | eDP (8 Lanes), HBR2 (5.4G/lane) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20525-060E-01 | 1 pcs | 0.4 mm | 60 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 113/118mA (Typ./Max.) | 56.6±3.8V | 51.2/54.6W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | SMH200-H12S4 | 1 pcs | 2.0 mm | 12 pins | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1198.08(W)×336.96(H) mm, outline size of 1209.9(W)×360.45(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 7.40/7.77Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM490DQ1-SSC1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 95% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM490DQ1-SSC1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.)
