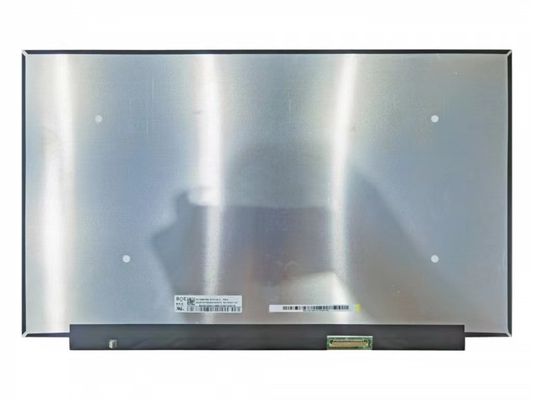

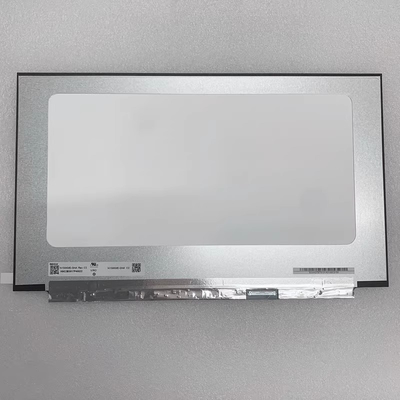

Product Details:
|
| Brand: | BOE | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Luminance: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NV156FHM-NY4 | a-Si TFT-LCD , LCM | BOE07B2 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.16×193.59 mm | - | 350.66×214.75 mm | 2.4/2.6 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 280g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | HADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 9 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 100% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 77% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.67 (Max.)(5/13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 545.5mA (Typ.) | 3.3V (Typ.) | 1.8W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (2 Lanes), eDP1.4, HBR2 (5.4G/lane) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSAK24025P40 | 1 pcs | 0.5 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 6 strings | 10S6P | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 5.0/12.0/21.0V (Min./Typ./Max.) | 3.7W (Max.) | ||||
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 35 | 1 | 480×350×285 | N/A | 0.0479 | |
| Pallet | 630 | 18 | N/A | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×214.75(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 280g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a HADS, Normally Black, Transmissive LCM product, NV156FHM-NY4 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV156FHM-NY4 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
