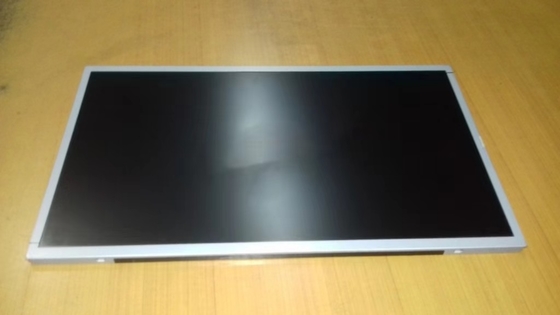

Product Details:
|
| Brand: | BOE | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Brightness: | 200 Cd/m² |
| Viewing Angle: | 45/45/25/40 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Brand | Model | MT185WHM-N10 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 18.5" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.100×0.300 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.300×0.300 (H×V) [84PPI] | |
| Mechanical Size : | Active Area(mm) | 409.8(H) × 230.4(V) | Bezel Area(mm) | 413.4(H) × 234.0(V) |
| Outline Dim.(mm) | 430.4(H) × 254.6(V) | Depth(mm) | 7.7/11.4 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 1.31Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/25/40 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 1.5/3.5 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 520/720mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.65/3.6W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-170A | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 14S2P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 42.7/46.2V | Current Supply | 49mA (Typ.) | ||
| Consumption | 4.19/5.45W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3707K-Q06N-00R | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.4(W)×254.6(H)×11.4(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.31Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, MT185WHM-N10 can provides 200 cd/m² display brightness 600:1 transimissive contrast ratio, 45/45/25/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 14S2P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. MT185WHM-N10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
