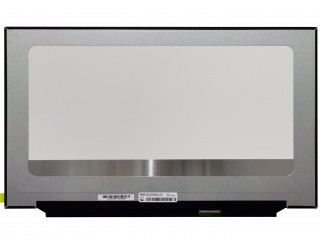

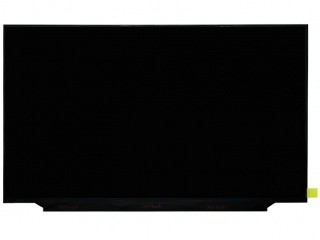

Product Details:
|
| Brand: | Samsung | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 283PPI | Luminance: | 440 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| Basic Information : | Brand | Model | ATNA56WR14-0 | |
|---|---|---|---|---|
| Type | OLED AM-OLED | Used For | ||
| Screen Size | 15.6" | Alias | SDC4143 | |
| Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.02988×0.08964 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.08964×0.08964 (H×V) [283PPI] | |
| Mechanical Size : | Active Area(mm) | 344.218(H) × 193.622(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 348.218(H) × 215.662(V) | Depth(mm) | 1.38/2.9 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait | |
| Other Spec : | Weight | 200g (Max.) | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 440 (Typ.) | Contrast Ratio | 100000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | - | |
| Best View on | Symmetry | Response(ms) | 1 (Typ.)(Tr+Tf) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.06B (8-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.18/1.33 (Typ./Max.)(13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 107% | sRGB | 100% coverage |
| Adobe RGB | 97% coverage | DCI-P3 | 100% coverage | |
| Rec.2020 | 80% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 573±86mA | ||
|---|---|---|---|---|---|---|
| Consumption | 1.9±0.3W | |||||
| Signal Type : | eDP (4 Lanes), eDP1.4b, HBR2 (5.4G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-02 | 1 pcs | 40 pins | 0.5 mm | ||
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 13 | 1 | 583×388×210 | 13.00 | 0.0475 | |
| Pallet | 156 | 12 | 1200×800×760 | N/A | 0.7296 |
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 348.218(W)×215.662(H)×2.9(D) mm, with surface treament of Glare (Haze 0%), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). ATNA56WR14-0 can provides 440 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA56WR14-0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
