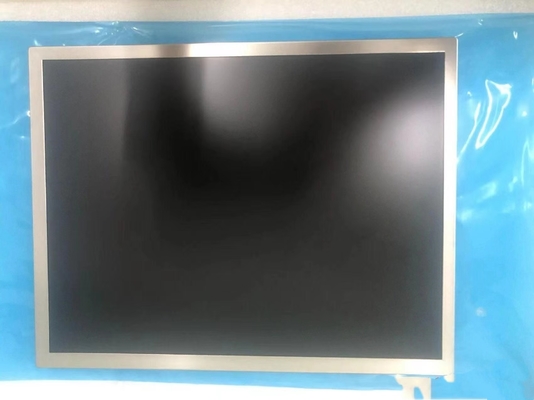

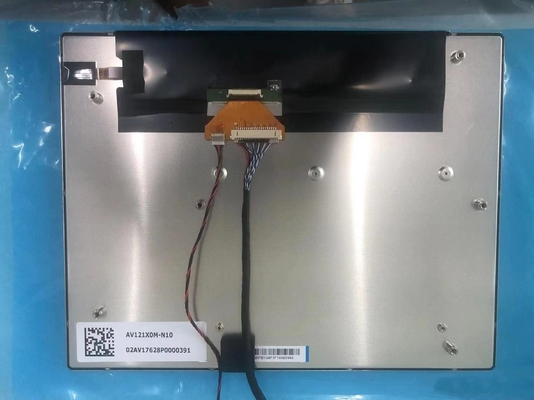

Product Details:
|
| Brand: | BOE | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Luminance: | 600 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| AV121X0M-N10 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 85 °C | -30 ~ 85 °C |
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.080×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 245.76×184.32 mm | 248.76×187.32 mm | 265.5×206.3 mm | 8/13.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | - | ||
| Holes & Brackets : | Rear mounting Pole | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Min.) | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6789K | 16.2M (6-bit + FRC) | X:0.311; Y:0.310 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 71% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Min.) | 8S6P | 6 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0V (Typ.) | 60mA (Typ.) | 8.64±0.86W | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| IRISO | IMSA-9686S-10B-GF4N | 1 pcs | 10 pins | 0.5 mm | BLE-10PINS-AANCCCCCCN | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/11.5/17.0/-9.0V (Typ.)(VCC/AVDD/VGH/VGL) | - | 1.2/2.0W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| IRISO | IMSA-9686S-30B-GF4N | 1 pcs | 30 pins | 0.5 mm | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 265.5(W)×206.3(H)×13.5(D) mm, viewing area size of 248.76(W)×187.32(H) mm, net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, AV121X0M-N10 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AV121X0M-N10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3/11.5/17.0/-9.0V (Typ.)(VCC/AVDD/VGH/VGL).
