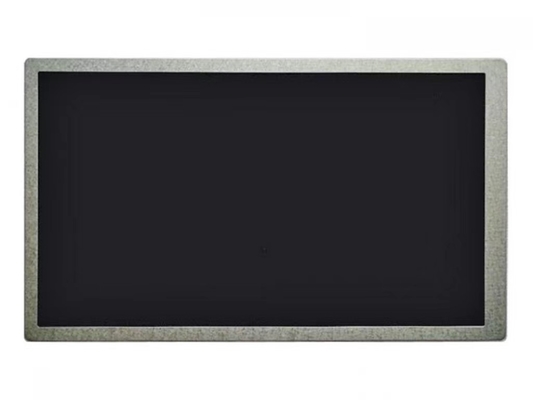

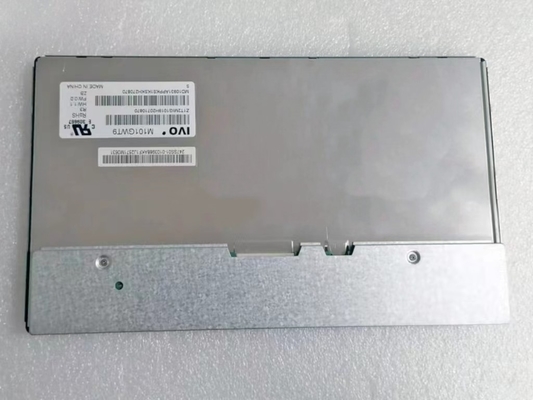

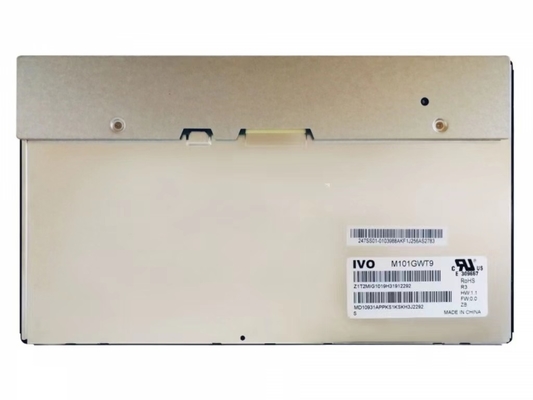

Product Details:
|
| Brand: | IVO | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117P | Brightness: | 640 Cd/m² |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| M101GWT9 R3 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 640 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 16 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6974K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.305; Y:0.325 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×600 [WSVGA] | RGB Vertical Stripe | 0.2175×0.2088 [117PPI] | 0.0725×0.2088 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 222.72(H) × 125.28(V) | 225.72(H) × 128.28(V) | 244(H) × 143(V) | 8.2/12.9 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 400/440g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7S2P | 2 strings | 50K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB24038P5A | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 8.0/12.0/16.0V (Min./Typ./Max.) | - | 4.22W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 191mA (Max.) | 0.63W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6/8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB240420HD | 1.25 mm | 20 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 244(W)×143(H)×12.9(D) mm, viewing area size of 225.72(W)×128.28(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400/440g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M101GWT9 R3 can provides 640 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. M101GWT9 R3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
