Product Details:
|
| Brand: | LG Display | Diagonal Size: | 21.3" |
|---|---|---|---|
| Resolution: | 1536(RGB)×2048, QXGA 120PPI | Luminance: | 1100 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

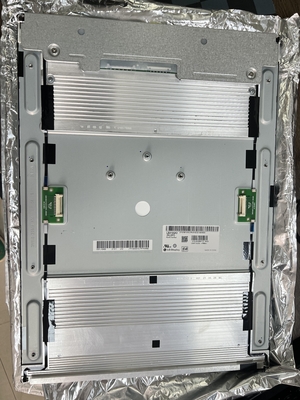

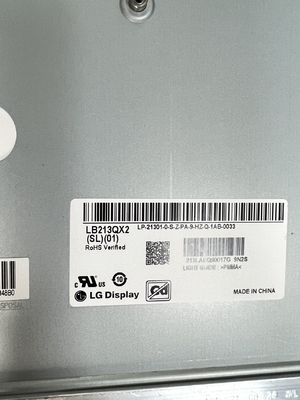

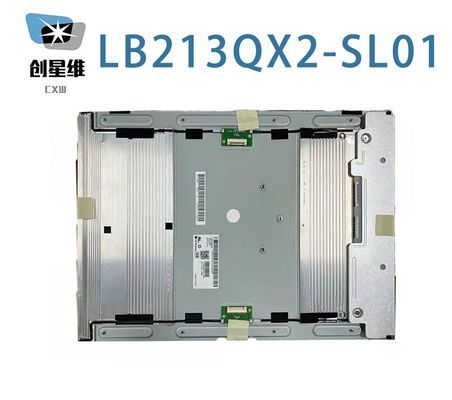

| Basic Info : | Panel Brand | Panel Model | LB213QX2-SL01 | |
|---|---|---|---|---|
| Diagonal Size | 21.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LB213QX2 (SL)(01) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1536(RGB)×2048 [QXGA] | Dot Pitch | 0.0705×0.2115 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2115×0.2115 mm (H×V) [120PPI] | |
| Mechanical Size : | Display Area | 324.864×433.152 mm (H×V) | Bezel Area | - |
| Outline Dim. | 336×453.1 mm (H×V) | Outline Depth | 18.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 2.70/2.84Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 1100 cd/m² (Typ.) | Contrast Ratio | 1800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.325 | Color Numbers | 1.07B (10-bit) |
| Color Temperature | 7336K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 98% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 62±2.2V | Current Input | 50mA (Typ.) | ||
| Consumption | 37.2/38.5W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |

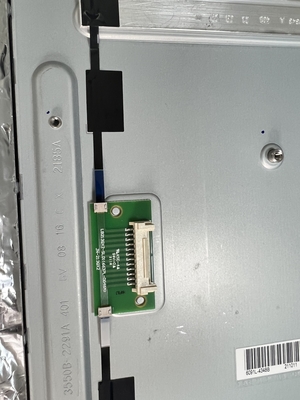

| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20037WR-H12 | 2.0 mm | 12 pins | 2 pcs | ||
| Signal Systerm : | LVDS (4 ch, 10-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.451/0.564A (Typ./Max.) | ||
| Consumption | 5.42/6.77W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05S-51S-H38 | 0.5 mm | 51 pins | 1 pcs | ||
| JAE | FI-RXE41S-HF | 0.5 mm | 41 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 324.864(W)×433.152(H) mm, outline size of 336(W)×453.1(H)×18.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.70/2.84Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB213QX2-SL01 can provides 1100 cd/m² display brightness 1800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LB213QX2-SL01 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.)
