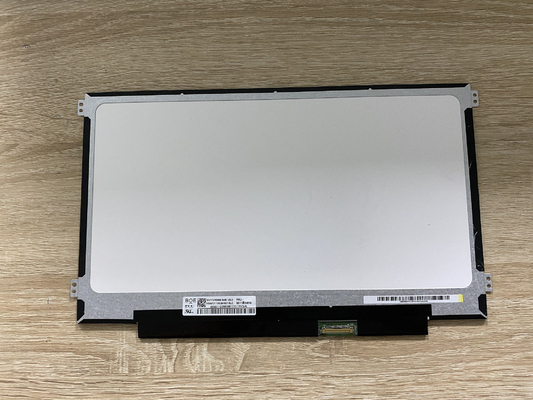

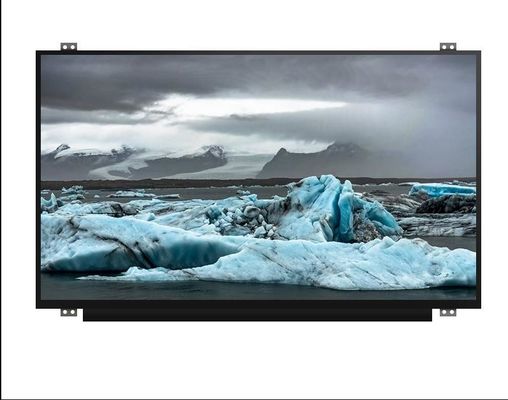

NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY

NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY
NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: BOE
Certification: ISO9001
Model Number: NV116WHM-N45
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION

NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: BOE Diagonal Size: 11.6"
Resolution: 1366(RGB)×768, WXGA 135PPI Luminance: 250 Cd/m²
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

BOE NV116WHM-N45 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  NV116WHM-N45 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



BOE NV116WHM-N45 Mechanical Features

Screen Size : 11.6"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1366(RGB)×768, WXGA RGB Vertical Stripe 0.0625×0.1875 mm 0.1875×0.1875 mm [135PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
256.125×144 mm - 278×168 mm 2.8/3.0 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type Slim (PCBA Flat, T≤3.2mm)
Other Spec : Mass Panel Cover Surface Treatment
200g (Max.) - -
Holes & Brackets : Face mounting holes (8 pcs) on left, right slugs



BOE NV116WHM-N45 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) ADS, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 30 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
53% 71% 55%
DCI-P3 Coverage Rec.2020 Coverage Remarks
55% 40% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.67 (Max.)(5/13 points)



BOE NV116WHM-N45 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type (Bottom side) 15K(Min.) 8S3P 3 strings -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Included in signal interface -
WLED Driver Electrical : Input Voltage Input Current Power Consumption
5.0/12.0/21.0V (Min./Typ./Max.) - 1.8W (Max.)



BOE NV116WHM-N45 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 273mA (Typ.) 0.6/1.0W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STM MSAK24025P30 1 pcs 30 pins 0.5 mm EDP-30P1L-030L



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 278(W)×168(H)×3(D) mm, net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV116WHM-N45 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV116WHM-N45 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).



NV116WHM-N45 BOE 11.6" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY 0
