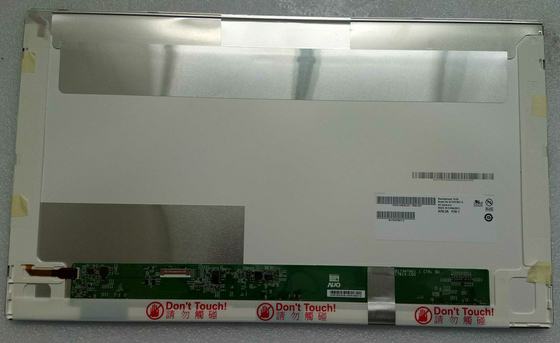

Product Details:
|
| Brand: | AUO | Diagonal Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 127PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Info : | Panel Brand | Panel Model | B173HTN01.1 | |
|---|---|---|---|---|
| Diagonal Size | 17.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | B173HTN01 V1, AUO119D | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0663×0.1989 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1989×0.1989 mm (H×V) [127PPI] | |
| Mechanical Size : | Display Area | 381.888×214.812 mm (H×V) | Bezel Area | - |
| Outline Dim. | 398.1×233.3 mm (H×V) | Outline Depth | 5.5/6.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Wedge (PCBA Bent, T≥5.2mm) | |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Features : | Weight | 590g (Max.) | Surface | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 8 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.312; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6538K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 7.0W (Max.) | |||||
| Signal Systerm : | eDP (2 Lanes), eDP1.2 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 350/600mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||

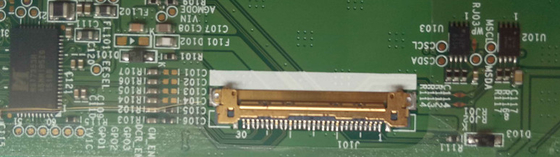

| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-12 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020J | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 398.1(W)×233.3(H)×6(D) mm, with surface treament of Antiglare, Hard coating (3H), Reflection 4.3% (Typ.), net weight of 590g (Max.), shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, B173HTN01.1 can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B173HTN01.1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
