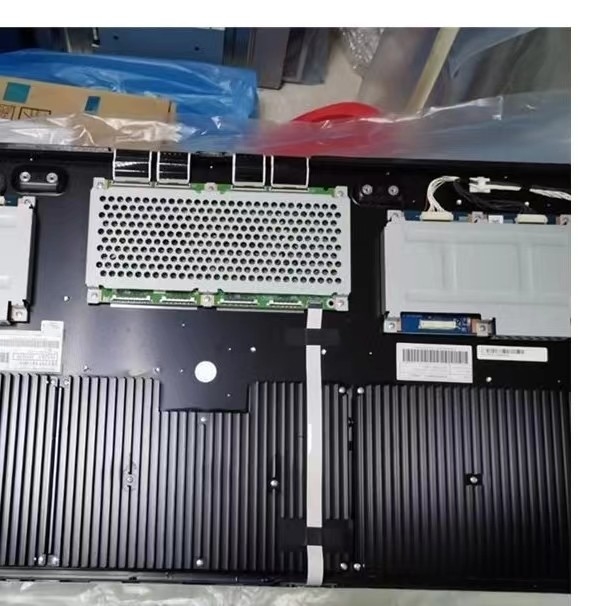

Product Details:
|
| Brand: | Panasonic | Diagonal Size: | 55" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 80PPI | Luminance: | 700 (Typ.)(cd/m²) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 40 °C |

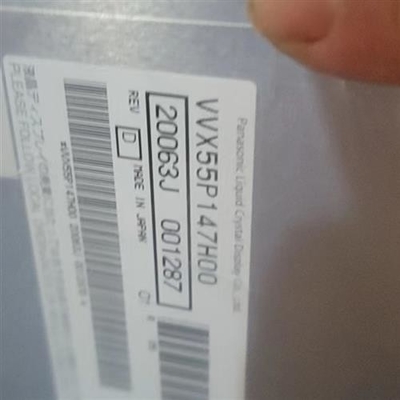

| Basic Detail : | Manufacturer | Model Name | VVX55P147H00 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 55 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 40 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 10/8 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.294; Wy:0.319 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 7766K | White Uniformity | 1.18 (Typ.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 100% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.105×0.315 mm | Pixel Pitch(W×H) | 0.315×0.315 mm [80PPI] | |
| Physical Size : | Active Viewing | 1209.6(W)×680.4(H) mm | Overall Dim. | 1253.6(W)×724.4(H) mm |
| Bezel Opening | 1215.6(W)×686.4(H) mm | Overall Depth | 32.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 20.0Kgs (Max.) | Surface | Antiglare |
| Signal Electrical : | Input Current | 9.6/10.6A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (8 ch, 10-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RNE51SZ-HF-R1500 | 2 pcs | 0.5 mm | 51 pins | ||
| JST | S13B-PH-SM3-TB | 1 pcs | 2.0 mm | 13 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | S14B-PHA-SM-TB(LF)(SN) | 1 pcs | 2.0 mm | 14 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 9.6/10.6A (Typ./Max.) | Input Voltage | 24.0±2.4V | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1253.6(W)×724.4(H)×32.5(D) mm, viewing area size of 1215.6(W)×686.4(H) mm, with surface treament of Antiglare, net weight of 20.0Kgs (Max.). As a IPS, Normally Black, Transmissive LCM product, VVX55P147H00 can provides 700 cd/m² display brightness 1400:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/8 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With LED Driver. VVX55P147H00 utilizes LVDS (8 ch, 10-bit) as it's signal inputting systerm, which connected by 115 pins Connector with power supply voltage of 12.0V (Typ.).
