Product Details:
|
| Brand: | AUO | Diagonal Size: | 42" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 52PPI | Brightness: | 500 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Brand | Model | P420HVN02.0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 42" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.1615×0.4845 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.4845×0.4845 (H×V) [52PPI] | |

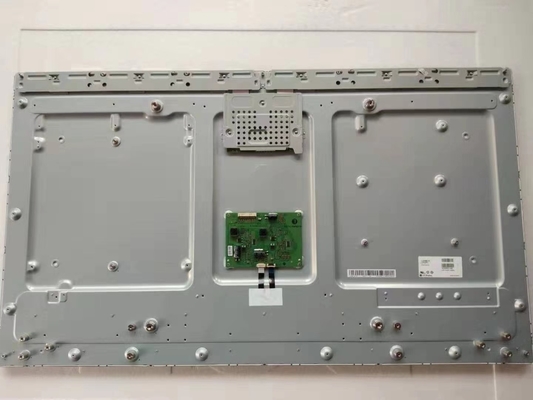

| Mechanical Size : | Active Area(mm) | 930.24(H) × 523.26(V) | Bezel Area(mm) | 938.6(H) × 531.5(V) |
| Outline Dim.(mm) | 958.2(H) × 551.1(V) | Depth(mm) | 16.2/28.65 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait | |
| Mounting : | Side mounting holes | |||
| Videowall Seam : | 28.0 mm (Active to Active) | |||
| Other Spec : | Weight | 9.50Kgs (Typ.) | Treatment | Antiglare (Haze 11%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 4000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AMVA3, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 8 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.2880; Y:0.290 | Display Colors | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC) |
| Color Temperature | 9114K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.2/1.5A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (2 ch, 8/10-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| CviLux | CI0114M1HRL-NH | 1 pcs | 14 pins | 2.0 mm | ||

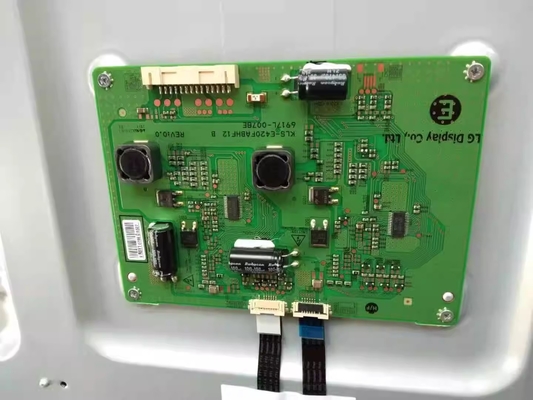

| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 24.0±1.2V | Current Supply | 3.43/3.64A (Typ./Max.) | ||
| Consumption | 82.2/87.4W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 930.24(W)×523.26(H) mm, outline size of 958.2(W)×551.1(H)×28.65(D) mm, viewing area size of 938.6(W)×531.5(H) mm, with surface treament of Antiglare (Haze 11%), Hard coating (3H), net weight of 9.50Kgs (Typ.), active_to_active splicing seam 28.0 mm. As a AMVA3, Normally Black, Transmissive LCM product, P420HVN02.0 can provides 500 cd/m² display brightness 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. P420HVN02.0 utilizes LVDS (2 ch, 8/10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
