Product Details:
|
| Brand: | AUO | Diagonal Size: | 42" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 52PPI | Luminance: | 500 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | P420HVN02.1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 42 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.04G (10.2 m/s²) |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 4000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AMVA3, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.280; Wy:0.290 | Support Color | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC) |
| Color Temperature | 9969K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1615×0.4845 mm | Pixel Pitch(W×H) | 0.4845×0.4845 mm [52PPI] | |
| Physical Size : | Active Viewing | 930.24(W)×523.26(H) mm | Overall Dim. | 958.2(W)×551.1(H) mm |
| Bezel Opening | 938.6(W)×531.5(H) mm | Overall Depth | 21.1/28.65 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Side mounting holes | |||
| Other Detail : | Mass | 9.50Kgs (Typ.) | Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Signal Electrical : | Input Current | 0.99/1.19A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 11.88/15.7W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8/10-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 60K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| CviLux | CI0114M1HRL-NH | 1 pcs | 2.0 mm | 14 pins | ||

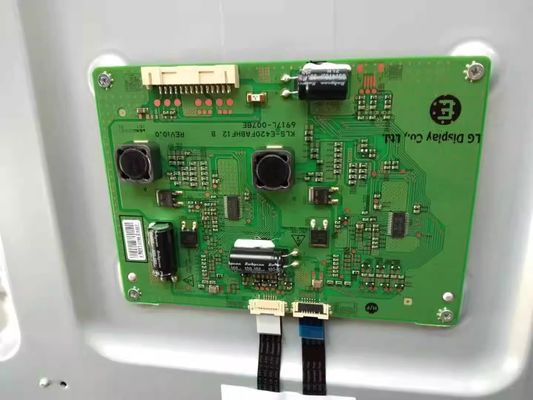

| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 2.1/2.35A (Typ./Max.) | Input Voltage | 24.0±1.2V | ||
| Consumption | 50.57/56.38W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 930.24(W)×523.26(H) mm, outline size of 958.2(W)×551.1(H)×28.65(D) mm, viewing area size of 938.6(W)×531.5(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 9.50Kgs (Typ.). As a AMVA3, Normally Black, Transmissive LCM product, P420HVN02.1 can provides 500 cd/m² display brightness 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 60K hours, With LED Driver. P420HVN02.1 utilizes LVDS (2 ch, 8/10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
