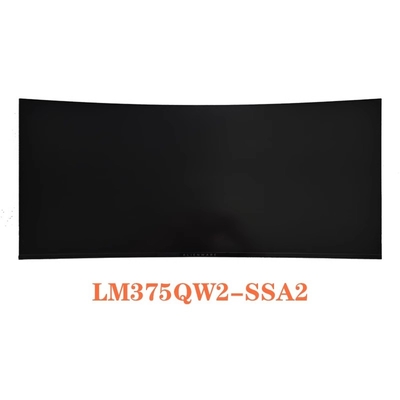

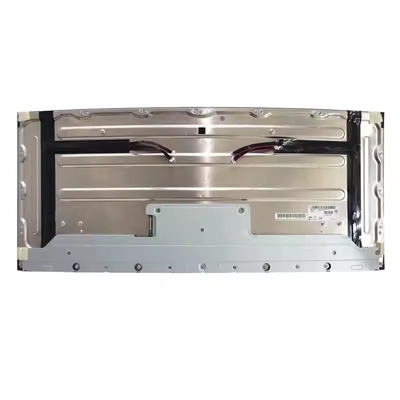

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 37.5" |
|---|---|---|---|
| Resolution: | 3840(RGB)×1600, UHD 110PPI | Luminance: | 450 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | LM375QW2-SSA2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM375QW2 (SS)(A2) | |
| Panel Size | 37.5 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Remarks : | 2300R, 95% DCI-P3, 3-side borderless, 144Hz | |||
| Basic Information : | Luminance | 450 cd/m² (Typ.), HDR600 | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 93% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 94% coverage | |
| Rec.2020 | 69% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×1600 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.076×0.229 mm | Pixel Pitch(W×H) | 0.229×0.229 mm [110PPI] | |
| Physical Size : | Active Viewing | 879.36(W)×366.4(H) mm | Overall Dim. | 891.02(W)×388.66(H) mm |
| Bezel Opening | - | Overall Depth | 13.45/18.69 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Curved Display, R2300 | Orientation | Landscape type |
| Aspect Ratio(W:H) | 21:9 | Shape Style | 3-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 3.98/4.18Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 850/1270mA (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.5/12.7W (Typ./Max.) | Signal Interface | eDP (8 Lanes), HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20525-060E-01 | 1 pcs | 0.4 mm | 60 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 62/67mA (Typ./Max.) | Input Voltage | 19.3±1.4V | ||
| Consumption | 38.3/41.1W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 10035HS-H10G | 4 pcs | 10 pins | BLE-10PINS-CCCCAACCCC | |||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 879.36(W)×366.4(H) mm, outline size of 891.02(W)×388.66(H)×18.69(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.98/4.18Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM375QW2-SSA2 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM375QW2-SSA2 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.).
