Product Details:
|
| Brand: | LG Display | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 5120(RGB)×2880, QQHD 218PPI | Luminance: | 540 Cd/m² (Typ.) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

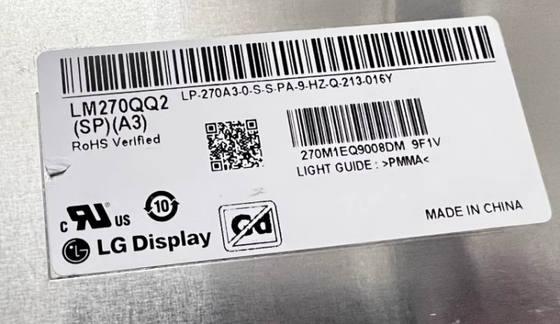

| Basic Info : | Panel Brand | Panel Model | LM270QQ2-SPA3 | |
|---|---|---|---|---|
| Diagonal Size | 27.0" | Application | ||
| Panel Type | Oxide TFT-LCD , LCM | Model Alias | LM270QQ2 (SP)(A3) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 5120(RGB)×2880 [QQHD] | Dot Pitch | 0.03875×0.11625 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.11625×0.11625 mm (H×V) [218PPI] | |
| Mechanical Size : | Display Area | 595.2×334.8 mm (H×V) | Bezel Area | - |
| Outline Dim. | 620.6×361.1 mm (H×V) | Outline Depth | 9.3/13.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Other Features : | Weight | 2.632.76Kgs (Typ./Max.) | Surface | Hard coating (2H), Antireflection |
| Basic Information : | Brightness | 540 cd/m² (Typ.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 99% | sRGB | 100% coverage |
| Adobe RGB | 89% coverage | DCI-P3 | 99% coverage | |
| Rec.2020 | 74% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 19S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 58.3±3.8V | Current Input | 145/150mA (Typ./Max.) | ||
| Consumption | 33.8/36.1W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 10035WR-H06D(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | eDP (8 Lanes), HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 385/480mA (Typ./Max.) | ||
| Consumption | 3.85/4.8W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20525-060E-01 | 0.4 mm | 60 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 595.2(W)×334.8(H) mm, outline size of 620.6(W)×361.1(H)×13.3(D) mm, with surface treament of Hard coating (2H), Antireflection, net weight of 2.632.76Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270QQ2-SPA3 can provides 540 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (DCI-P3). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270QQ2-SPA3 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 12.0V (Typ.). I
