Product Details:
|
| Brand: | LG Display | Diagonal Size: | 43" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 103PPI | Brightness: | 350 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

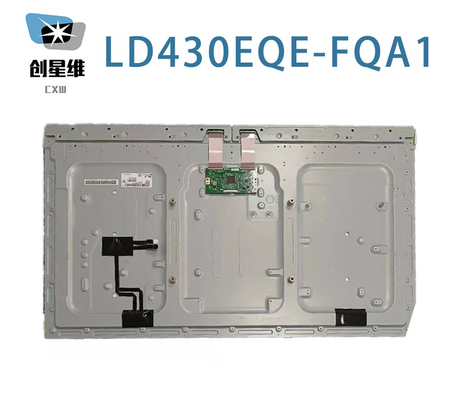

| Basic Info : | Panel Brand | Panel Model | LD430EQE-FQA1 | |
|---|---|---|---|---|
| Diagonal Size | 43" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LD430EQE (FQ)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.0817×0.2451 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2451×0.2451 mm (H×V) [103PPI] | |
| Mechanical Size : | Display Area | 941.184×529.416 mm (H×V) | Bezel Area | - |
| Outline Dim. | 962×554.8 mm (H×V) | Outline Depth | 18.3/34.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 8.3/8.7Kgs (Typ./Max.) | Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 6 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Dithering) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 98% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 3 strings × 2CN | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3 strings × 2CN | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 146.3/153.9/165.3V (Min./Typ./Max.) | Current Input | 35mA (Typ.) | ||
| Consumption | 32.23W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | HS100-L08N-N62 | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-CCCNNNNA | |
| UJU | HS100-L08N-N62-A | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-ANNNNCCC | |
| Signal Systerm : | V-by-One 8 lane | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 490/640mA (Typ./Max.) | ||
| Consumption | 5.88/7.68W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, outline size of 962(W)×554.8(H)×34.6(D) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 8.3/8.7Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LD430EQE-FQA1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (sRGB). This product adopted 3 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LD430EQE-FQA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
