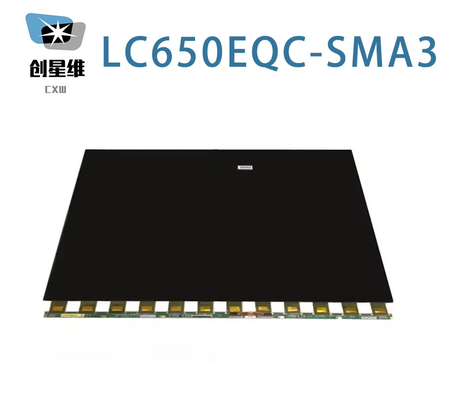

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 65" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 68PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Info : | Panel Brand | Panel Model | LC650EQC-SMA3 | |
|---|---|---|---|---|
| Diagonal Size | 65" | Application | ||
| Panel Type | a-Si TFT-LCD , CELL | Model Alias | LC650EQC (SM)(A3) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.124×0.372 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.372×0.372 mm (H×V) [68PPI] | |
| Mechanical Size : | Display Area | 1428.48×803.52 mm (H×V) | Bezel Area | - |
| Outline Dim. | 1440.3×817.9 mm (H×V) | Outline Depth | 1.20 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Plate Thickness | - | |
| Other Features : | Weight | 3.20/3.36Kgs (Typ./Max.) | Surface | Antiglare (Haze 3%), Hard coating (2H) |
| Basic Information : | Brightness | 0 cd/m² | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 8/10 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 1.07B (8-bit + Dithering) |
| 1931 Color Gamut : | NTSC Ratio | - | sRGB | 85% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 70% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmittance | 5.5% (Typ.) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |

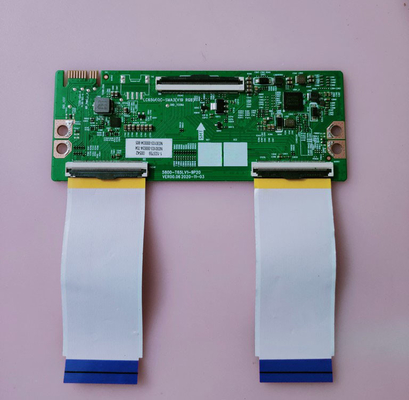

| D-IC Detail : | COF Built-in 8 source chips |
| Signal Systerm : | EPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 1.16/3.25A (Typ./Max.) | ||
| Consumption | 14/39W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| TF49-60S-0.5SH | 0.5 mm | 60 pins | 2 pcs | |||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.3(W)×817.9(H)×1.2(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), net weight of 3.20/3.36Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LC650EQC-SMA3 can provides 1300:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. LC650EQC-SMA3 utilizes EPI as it's signal inputting systerm, which connected by 120 pins Connector with power supply voltage of 12.0V (Typ.)
