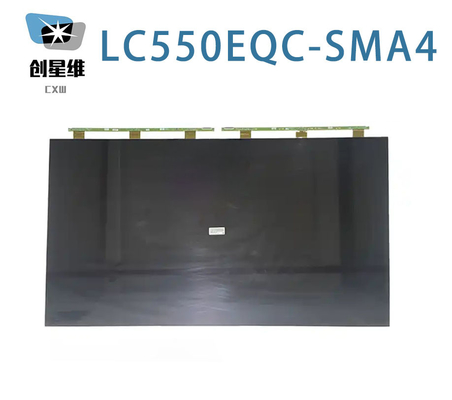

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 55" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 80PPI | Viewing Angle: | 89/89/89/89 |
| Luminance: | 0 Cd/m² | Max. Ratings: | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LC550EQC-SMA4 | a-Si TFT-LCD , CELL | LC550EQC (SM)(A4) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 65 °C |
| Panel Size : | 55 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.105×0.315 mm | 0.315×0.315 mm [80PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 1209.6×680.4 mm | - | 1221.4×694.8 mm | 1.20 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 (W : H) | Landscape type | - | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.50/2.63Kgs (Typ./Max.) | Antiglare (Haze 3%), Hard coating (2H), Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | IPS, Normally Black, Transmissive | 1300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 8/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 1.07B (8-bit + Dithering) | - | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 68% | 85% | 70% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 69% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmittance : | 5.49% (Typ.)(with Polarizer) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.93/1.98A (Typ./Max.) | 12.0V (Typ.) | 11.5/23.7W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | EPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| TF49-60S-0.5SH | 2 pcs | 0.5 mm | 60 pins | |||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1221.4(W)×694.8(H)×1.2(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), Antireflection, net weight of 2.50/2.63Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LC550EQC-SMA4 can provides 1300:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 68% (NTSC). This product have no backlight. LC550EQC-SMA4 utilizes EPI as it's signal inputting systerm, which connected by 120 pins Connector with power supply voltage of 12.0V (Typ.)
