Product Details:
|
| Brand: | LG Display | Diagonal Size: | 55" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 80PPI | Brightness: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|

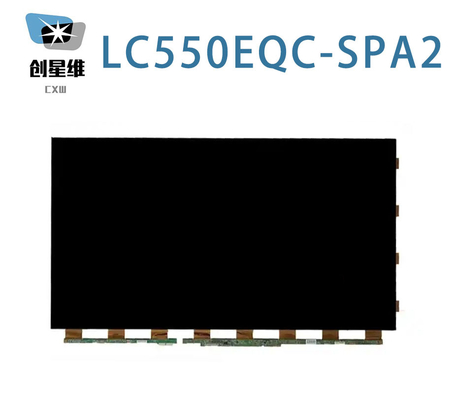

| LC550EQC-SPA2 | a-Si TFT-LCD , CELL | LC550EQC (SP)(A2) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 65 °C |
| Screen Size : | 55" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.105×0.315 mm | 0.315×0.315 mm [80PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1209.6×680.4 mm | - | 1219.6×691.9 mm | 1.20 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.50/2.63Kgs (Typ./Max.) | - | Antiglare (Haze 1%), Hard coating (2H), Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | IPS, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 8/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (8-bit) | - | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 90% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmissivity : | 5.3% (Typ.) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COF Built-in 12 source chips |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 13.0V (Typ.) | 0.98/1.16A (Typ./Max.) | 11.6/15.1W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| USI-T | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 05002HR-H96VE1 | 1 pcs | 96 pins | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1219.6(W)×691.9(H)×1.2(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (2H), Antireflection, net weight of 2.50/2.63Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LC550EQC-SPA2 can provides 900:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (NTSC). This product have no backlight. LC550EQC-SPA2 utilizes USI-T as it's signal inputting systerm, which connected by 96 pins Connector with power supply voltage of 13.0V (Typ.).
