Product Details:
|
| Brand: | AUO | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 89PPI | Luminance: | 250 Cd/m² |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

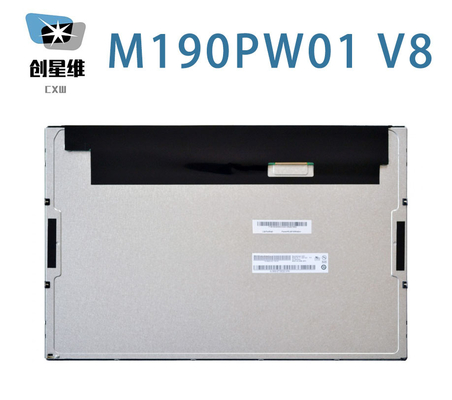

| Basic Detail : | Manufacturer | Model Name | M190PW01 V8 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | M190PW01 V.8 | |
| Panel Size | 19.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 3.6/1.4 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1440(RGB)×900 [WXGA+] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0945×0.2835 mm | Pixel Pitch(W×H) | 0.2835×0.2835 mm [89PPI] | |
| Physical Size : | Active Viewing | 408.24(W)×255.15(H) mm | Overall Dim. | 428(W)×278(H) mm |
| Bezel Opening | 412.24(W)×259.15(H) mm | Overall Depth | 7.7/10.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.45Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 0.9/1.1A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.5/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-XPB30SRL-HF11 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 13S4P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 60/80mA (Typ./Max.) | Input Voltage | 39/44.2/46.8V (Min./Typ./Max.) | ||
| Consumption | 10.6/15.0W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3707K-Q06N-01R | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.24(W)×255.15(H) mm, outline size of 428(W)×278(H)×10.8(D) mm, viewing area size of 412.24(W)×259.15(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.45Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, M190PW01 V8 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3.6/1.4 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 13S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M190PW01 V8 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
