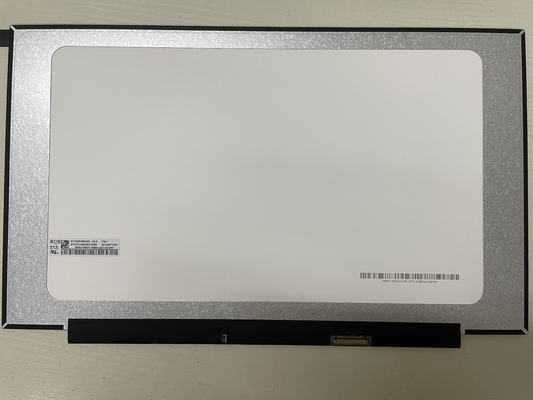

Product Details:
|
| Brand: | BOE | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Brand | Model | NV156FHM-N4M 1 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.6" | Alias | BOE081A | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05975×0.17925 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925×0.17925 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 344.16(H) × 193.59(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 350.66(H) × 205.69(V) | Depth(mm) | 3.0/5.4 (Typ./Max) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 380g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 273/485mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.9/1.6W (Typ./Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-66 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020V | |
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S6P | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 4.2W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×205.69(H)×5.4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV156FHM-N4M can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV156FHM-N4M utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
