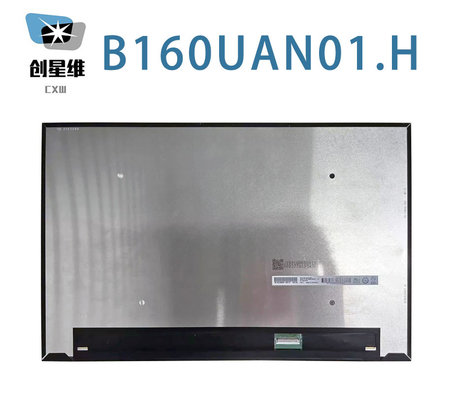

Product Details:
|
| Brand: | AUO | Diagonal Size: | 16.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 141PPI | Luminance: | 400 (Typ.)(cd/m²) |
| Basic Information : | Brand | Model | B160UAN01.H | |
|---|---|---|---|---|
| Type | LCM LTPS TFT-LCD | Used For | ||
| Screen Size | 16.0" | Alias | AUO0B9E | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.05984×0.17952 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17952×0.17952 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 344.68(H) × 215.42(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 350.38(H) × 226.17(V) | Depth(mm) | 2.45/4.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 330g | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Max.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 81% | sRGB | 100% coverage |
| Adobe RGB | 82% coverage | DCI-P3 | 85% coverage | |
| Rec.2020 | 61% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150mA (Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.45W (Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.4 | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSAK24025P30M | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 3.0W (Max.) | |||||
hose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.68(W)×215.42(H) mm, outline size of 350.38(W)×226.17(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g, shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B160UAN01.H can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Max.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B160UAN01.H utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
