Product Details:
|
| Brand: | LG Display | Diagonal Size: | 37.5" |
|---|---|---|---|
| Resolution: | 3840(RGB)×1600, UHD 110PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Active Area: | 879.36(W)×366.4(H) Mm | Contrast Ratio: | 2000:1 (Typ.) (TM) |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

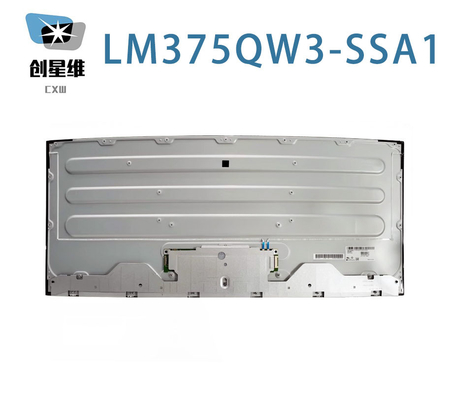

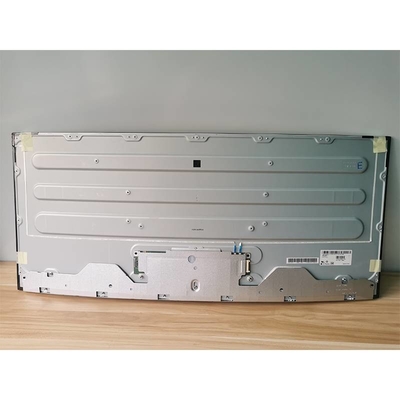

| LM375QW3-SSA1 | a-Si TFT-LCD , LCM | LM375QW3 (SS)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | - | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 2000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 |
| Panel Size : | 37.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×1600 [UHD] | RGB Vertical Stripe | 0.229×0.229 [110PPI] | 0.076×0.229 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 879.36(H) × 366.4(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |

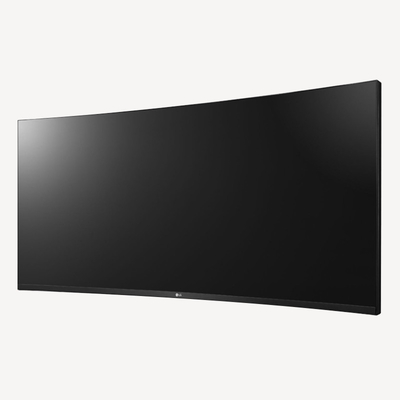

| Curved Display, R2300 | Landscape type | 21:9 (H:V) | 3-side borderless | |
| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| - | - | Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
whose pixes are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 879.36(W)×366.4(H) mm, with surface treament of Hard coating (3H). As a IPS, Normally Black, Transmissive LCM product, LM375QW3-SSA1 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM375QW3-SSA1 utilizes eDP as it's signal inputting systerm Connector.
