Product Details:
|
| Brand: | LG Display | Diagonal Size: | 37.5" |
|---|---|---|---|
| Resolution: | 3840(RGB)×1600, UHD 110PPI | Luminance: | 300 (Typ.)(cd/m²) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

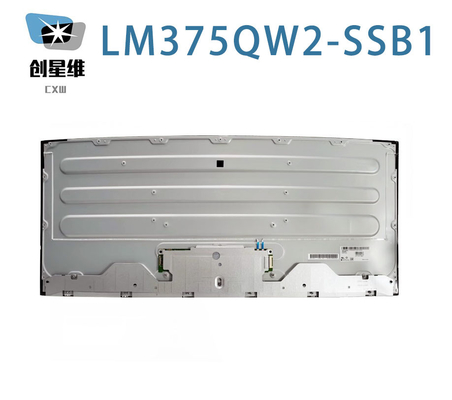

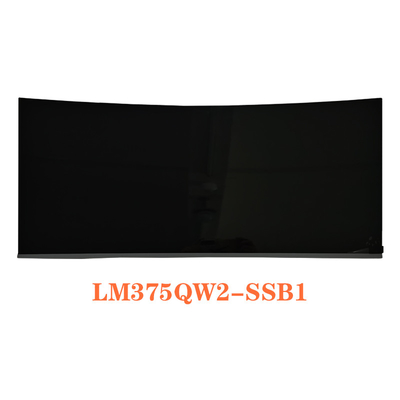

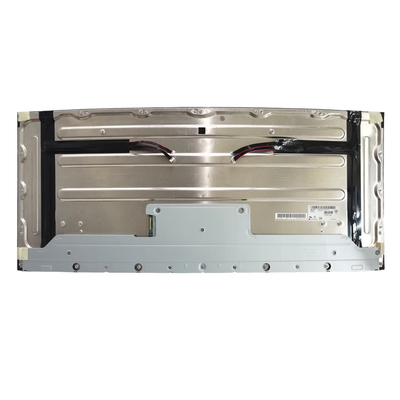

| Basic Info : | Panel Brand | Panel Model | LM375QW2-SSB1 | |
|---|---|---|---|---|
| Diagonal Size | 37.5" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM375QW2 (SS)(B1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 3840(RGB)×1600 [UHD] | Dot Pitch | 0.076×0.229 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.229×0.229 mm (H×V) [110PPI] | |
| Mechanical Size : | Display Area | 879.36×366.4 mm (H×V) | Bezel Area | - |
| Outline Dim. | 890×387.8 mm (H×V) | Outline Depth | 16.05 (Typ.) mm | |
| Outline Features : | Form Factor | Curved Display, R2300 | Orientation | Landscape type |
| Aspect Ratio | 21:9 (H:V) | Shape Style | 3-side borderless | |
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 5.26/5.52Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 6 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 93% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 94% coverage | |
| Rec.2020 | 69% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 15S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 43.1±3V | Current Input | 97/102mA (Typ./Max.) | ||
| Consumption | 25.1/26.8W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20037WR-H12 | 2.0 mm | 12 pins | 1 pcs | ||
| Signal Systerm : | eDP (4 Lanes), HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10.0V (Typ.) | Current Input | 0.82/1.03A (Typ./Max.) | ||
| Consumption | 8.2/10.25W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | EDP-30P4L-031A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 879.36(W)×366.4(H) mm, outline size of 890(W)×387.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 5.26/5.52Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM375QW2-SSB1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 15S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM375QW2-SSB1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.).
