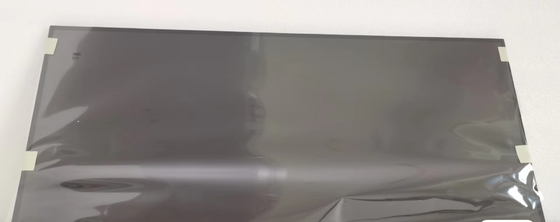

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 34" |
|---|---|---|---|
| Resolution: | 5120(RGB)×2160, WUHD 163PPI | Luminance: | 450 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

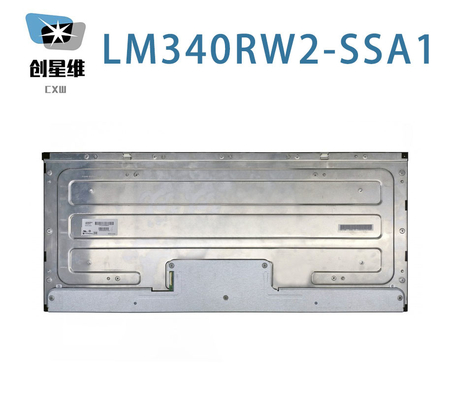

| Basic Info : | Panel Brand | Panel Model | LM340RW2-SSA1 | |
|---|---|---|---|---|
| Diagonal Size | 34" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM340RW2 (SS)(A1), LGD4E40 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 5120(RGB)×2160 [WUHD] | Dot Pitch | 0.0518×0.1554 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1554×0.1554 mm (H×V) [163PPI] | |
| Mechanical Size : | Display Area | 795.648×335.664 mm (H×V) | Bezel Area | - |
| Outline Dim. | 811.9×357.13 mm (H×V) | Outline Depth | 10.5/115 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 21:9 (H:V) | Shape Style | 3-side borderless | |
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 3.46/3.63Kgs (Typ./Max.) | Surface | Hard coating (3H), Antireflection |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 95% | sRGB | 100% coverage |
| Adobe RGB | 87% coverage | DCI-P3 | 97% coverage | |
| Rec.2020 | 71% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 6 strings × 2CN | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S6P×2CN | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 40.3±1.4V | Current Input | 95/100mA (Typ./Max.) | ||
| Consumption | 45.9/47.5W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 10035WS-H10D | 1.0 mm | 10 pins | 2 pcs | BLE-10PINS-CCCNAANCCC | |
| Signal Systerm : | eDP (8 Lanes), HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10.0V (Typ.) | Current Input | 0.55/0.69A (Typ./Max.) | ||
| Consumption | 5.5/6.9W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20525-060E-01 | 0.4 mm | 60 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 795.648(W)×335.664(H) mm, outline size of 811.9(W)×357.13(H)×15(D) mm, with surface treament of Hard coating (3H), Antireflection, net weight of 3.46/3.63Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM340RW2-SSA1 can provides 450 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 97% (DCI-P3). This product adopted 7S6P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM340RW2-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.)
