Product Details:
|
| Brand: | LG Display | Diagonal Size: | 34" |
|---|---|---|---|
| Resolution: | 5120(RGB)×2160, WUHD 163PPI | Brightness: | 450 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

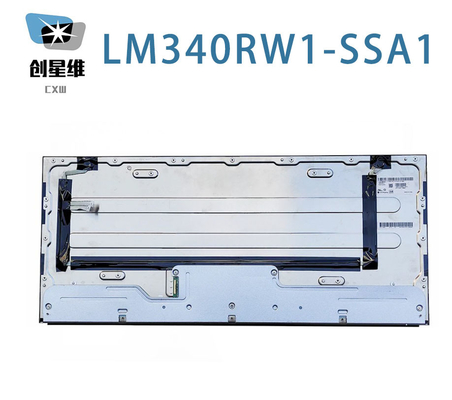

| Basic Detail : | Manufacturer | Model Name | LM340RW1-SSA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM340RW1 (SS)(A1) | |
| Panel Size | 34 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 450 cd/m² (Typ.), HDR600 | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 87% coverage | DCI-P3 | 98% coverage | |
| Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 5120(RGB)×2160 [WUHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0518×0.1554 mm | Pixel Pitch(W×H) | 0.1554×0.1554 mm [163PPI] | |
| Physical Size : | Active Viewing | 795.648(W)×335.664(H) mm | Overall Dim. | 812(W)×355(H) mm |
| Bezel Opening | - | Overall Depth | 15.7 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 21:9 | Shape Style | 4-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 3.58Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 1.06/1.33A (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 10.6/13.3W (Typ./Max.) | Signal Interface | eDP (8 Lanes), HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20525-060E-01 | 1 pcs | 0.4 mm | 60 pins | ||
| Lamp Features: | Lamp Shape | 6 strings × 2CN | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 7S6P×2CN | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 85/90mA (Typ./Max.) | Input Voltage | 40.3±1.4V | ||
| Consumption | 41.1/42.6W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 12507HS-H10G1 | 2 pcs | 1.25 mm | 10 pins | BLE-10PINS-CCCNAANCCC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 795.648(W)×335.664(H) mm, outline size of 812(W)×355(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.58Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM340RW1-SSA1 can provides 450 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted 7S6P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM340RW1-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.).
