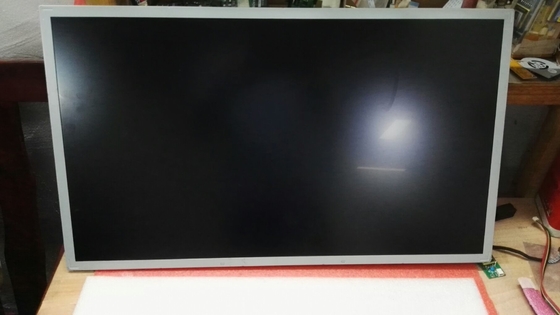

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 108PPI | Brightness: | 450 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Info : | Panel Brand | Panel Model | LM270WQB-SSA2 | |
|---|---|---|---|---|
| Diagonal Size | 27.0" | Application |
|
|
| Panel Type | Oxide TFT-LCD , LCM | Model Alias | LM270WQB (SS)(A2) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 2560(RGB)×1440 [Quad-HD] | Dot Pitch | 0.0777×0.2331 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2331×0.2331 mm (H×V) [108PPI] | |
| Mechanical Size : | Display Area | 596.736×335.664 mm (H×V) | Bezel Area | - |
| Outline Dim. | 603.8×347.45 mm (H×V) | Outline Depth | 6.7/16.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 4-side borderless | |

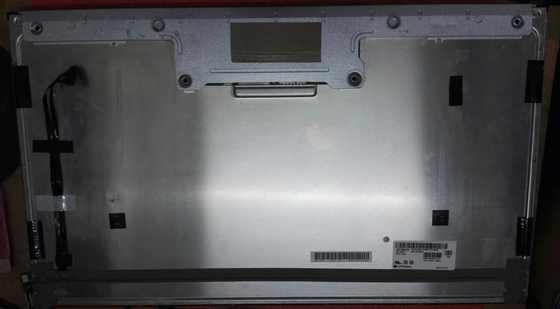

| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 3.23/3.39Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 5 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 90% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 93% coverage | |
| Rec.2020 | 67% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 11.1±0.4V | Current Input | 65/70mA (Typ./Max.) | ||
| Consumption | 23.1/23.9W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 10035WS-H10D | 1.0 mm | 10 pins | 4 pcs | BLE-10PINS-CCCCAACCCC | |
| Signal Systerm : | eDP (8 Lanes), HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10.0V (Typ.) | Current Input | 670/835mA (Typ./Max.) | ||
| Consumption | 6.7/8.35W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20525-060E-01 | 0.4 mm | 60 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 603.8(W)×347.45(H)×16.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.23/3.39Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WQB-SSA2 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 93% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WQB-SSA2 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.).
