Product Details:
|
| Brand: | LG Display | Diagonal Size: | 26.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1920 102PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

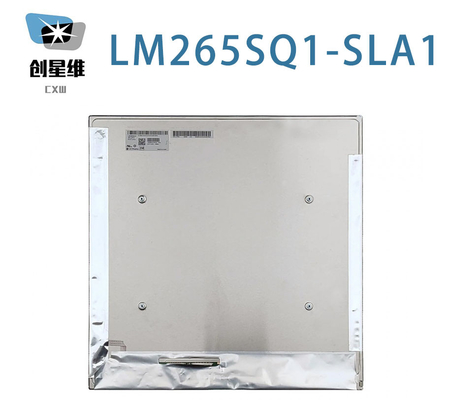

| Basic Detail : | Manufacturer | Model Name | LM265SQ1-SLA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM265SQ1 (SL)(A1) | |
| Panel Size | 26.5 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1920 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0826×0.2478 mm | Pixel Pitch(W×H) | 0.2478×0.2478 mm [102PPI] | |
| Physical Size : | Active Viewing | 475.776(W)×475.776(H) mm | Overall Dim. | 491.8(W)×491.8(H) mm |
| Bezel Opening | 479.0(W)×479.0(H) mm | Overall Depth | 8.4/13.1 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 1:1 | Videowall Seam | 16.0 mm (Active to Active) | |
| Fixation : | Rear mounting holes (4-M3) | |||
| Other Detail : | Mass | 2.21Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 610/760mA (Typ./Max.) | Input Voltage | 10V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.1/7.6W (Typ./Max.) | Signal Interface | LVDS (4 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05P-51S-H38-E1500 | 1 pcs | 0.5 mm | 51 pins | ||
| LS Mtron | GT05P-41S-H38-E1500 | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Left side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 120mA (Typ.) | Input Voltage | 45.8±3V | ||
| Consumption | 22/23.4W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 475.776(W)×475.776(H) mm, outline size of 491.8(W)×491.8(H)×13.1(D) mm, viewing area size of 479.0(W)×479.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.21Kgs (Typ.), active_to_active splicing seam 16.0 mm. As a IPS, Normally Black, Transmissive LCM product, LM265SQ1-SLA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM265SQ1-SLA1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10V (Typ.)
