Product Details:
|
| Brand: | LG Display | Diagonal Size: | 21.3" |
|---|---|---|---|
| Resolution: | 1536(RGB)×2048, QXGA 120PPI | Outline (mm): | 336×453.1×18.5 (H×V×D) |
| Luminance: | 1100 Cd/m² (Typ.) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|

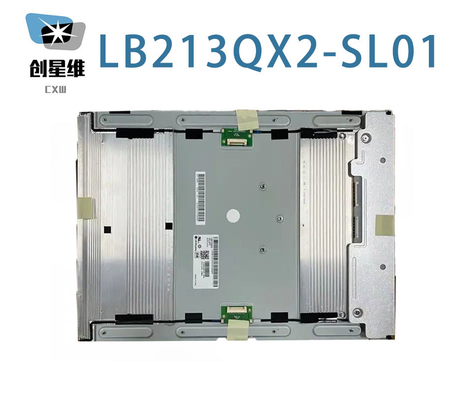

| LB213QX2-SL01 | a-Si TFT-LCD , LCM | LB213QX2 (SL)(01) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 21.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1536(RGB)×2048, QXGA | RGB Vertical Stripe | 0.0705×0.2115 mm | 0.2115×0.2115 mm [120PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 324.864×433.152 mm | - | 336×453.1 mm | 18.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Fixation : | Rear mounting holes | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.70/2.84Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1100 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 25 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7336K | 1.07B (10-bit) | X:0.299; Y:0.325 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 98% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.451/0.564A (Typ./Max.) | 12.0V (Typ.) | 5.42/6.77W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (4 ch, 10-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| LS Mtron | GT05S-51S-H38 | 1 pcs | 0.5 mm | 51 pins | ||
| JAE | FI-RXE41S-HF | 1 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 50mA (Typ.) | 62±2.2V | 37.2/38.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | 20037WR-H12 | 2 pcs | 2.0 mm | 12 pins | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 324.864(W)×433.152(H) mm, outline size of 336(W)×453.1(H)×18.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.70/2.84Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB213QX2-SL01 can provides 1100 cd/m² display brightness 1800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LB213QX2-SL01 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.).
