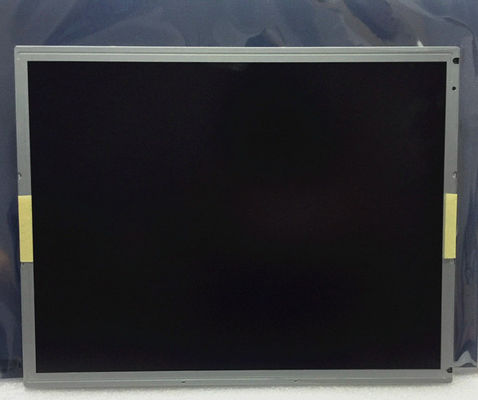

Product Details:
|
| Brand: | BOE | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Outline(mm): | 279(W)×209(H)×9.3(D) |
| Luminance: | 400 (Typ.)(cd/m²) | Viewing Angle: | 80/80/65/75 (Typ.)(CR≥10) |
| Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Basic Information : | Brand | Model 1 Compatible | Type | Model Alias |
|---|---|---|---|---|

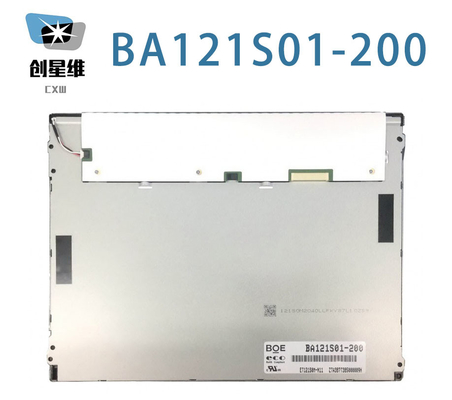

| BA121S01-200 | a-Si TFT-LCD , LCM | ET121S0M-N11 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | 249.05×188.30 mm | 279×209 mm | 5.73/9.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (6-Φ3.4) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 500g (Max.) | Antiglare (Haze 25%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/65/75 (Typ.)(CR≥10) | 12 o'clock | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 55% | 77% | 57% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 57% | 41% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3V (Typ.) | 0.4/0.45W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
 |
Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSB240420HEA | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-080B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSB24038P5 | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 12.0±0.5V | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H)×9.3(D) mm, viewing area size of 249.05(W)×188.30(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 500g (Max.). As a TN, Normally White, Transmissive LCM product, BA121S01-200 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. BA121S01-200 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
