Product Details:
|
| Brand: | BOE | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Outline Dim.: | 279(W)×209(H)×9.6(D) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Viewing Angle: | 80/80/65/75 (Typ.)(CR≥10) |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

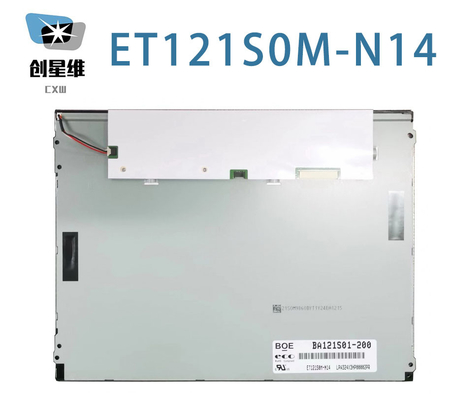

| Basic Information : | Brand | Model | ET121S0M-N14 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 12.1" | Alias | BA121S01-200 | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.05(H) × 188.30(V) |
| Outline Dim.(mm) | 279(H) × 209(V) | Depth(mm) | 5.73/9.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (6-Φ3.4) on left, right bezel | |||
| Other Spec : | Weight | 630g (Max.) | Treatment | Antiglare (Haze 25%) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 57% | sRGB | 80% coverage |
| Adobe RGB | 59% coverage | DCI-P3 | 59% coverage | |
| Rec.2020 | 42% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 90.6/122.4/153.4mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.299/0.403/0.506W (Min./Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB24013P20HA | 1 pcs | 20 pins | 1.0 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB24038P5 | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±0.5V | Current Supply | 352.4/367/383mA (Min./Typ./Max.) | ||
| Consumption | 4.4/4.8W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H)×9.6(D) mm, viewing area size of 249.05(W)×188.30(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 630g (Max.). As a TN, Normally White, Transmissive LCM product, ET121S0M-N14 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. ET121S0M-N14 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
