Product Details:
|
| Brand: | BOE | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.432(W)×157.824(H) Mm |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Support Color: | 16.7M 70% NTSC |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|

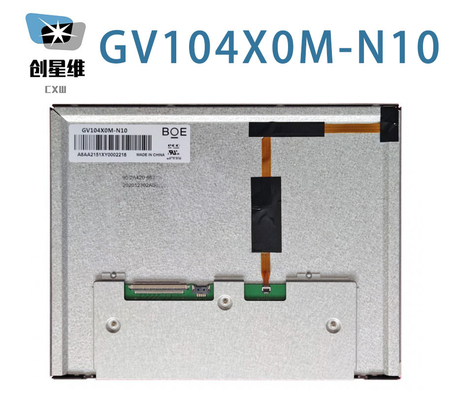

| GV104X0M-N10 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.0685×0.2055 mm | 0.2055×0.2055 mm [123PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 210.432×157.824 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | ADS, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (8-bit) | - | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 89% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 71% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| D-IC Detail : | COG Suggest HX8282A + HX8696E*2 |
|---|
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.432(W)×157.824(H) mm. As a ADS, Normally Black, Transmissive LCM product, GV104X0M-N10 can provides 1100:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. For more latest product detail of GV104X0M-N10 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with BOE or it's distributor.
