Product Details:
|
| Brand: | BOE | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Outline Dim.: | 236(H)×176.9(V) ×5.9(D) Mm |
| Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Basic Information : | Brand Name | Model Name 1 Compatible | Type | Model Alias |
|---|---|---|---|---|

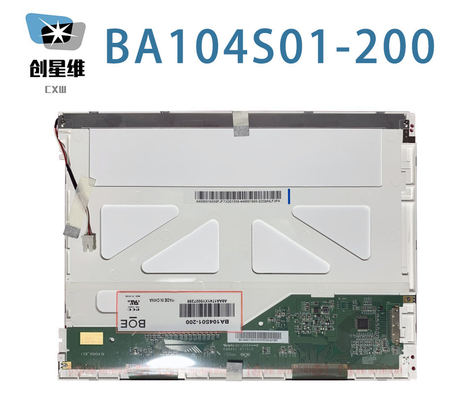

| BA104S01-200 | a-Si TFT-LCD , LCM | TT104S0M-NW0 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 215.0×162.0 mm | 236×176.9 mm | 5.6±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 290g (Typ.) | - | Clear | ||
| Holes & Brackets : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 70/70/60/70 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9201K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.288; Y:0.288 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 73% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.43 (Typ./max.)(9 points) | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 320/480mA (Typ./Max.) | 1.056/1.6W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSB24013P20 | 1 pcs | 20 pins | 1.0 mm | LVDS-20P1C8B-020D | |
hose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×176.9(H)×5.9(D) mm, viewing area size of 215.0(W)×162.0(H) mm, with surface treament of Clear, net weight of 290g (Typ.). As a TN, Normally White, Transmissive LCM product, BA104S01-200 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. BA104S01-200 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
