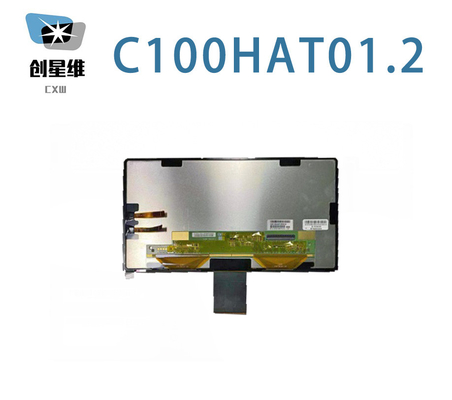

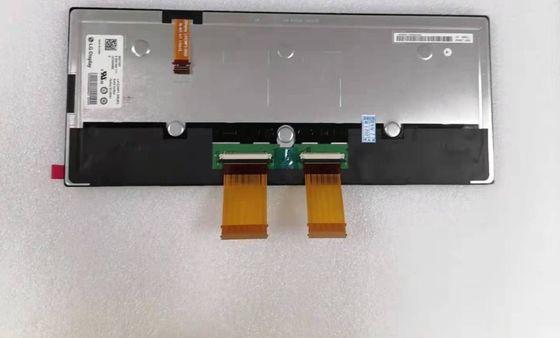

Product Details:
|
| Brand: | AUO | Resolution: | 1560(RGB)×700 171PPI |
|---|---|---|---|
| Diagonal Size: | 10.0" | Outline Size: | 259.36(W)×131.32(H) ×12.78(D) Mm |
| Brightness: | 940 Cd/m² (Min.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Basic Detail : | Manufacturer | Model Name | C100HAT01.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 2.9G (28.4 m/s²) |
| Basic Information : | Luminance | 940 cd/m² (Min.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Max.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.322; Wy:0.321 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6060K | White Uniformity | 1.33 (Max.) | |
| 1931 Color Gamut : | NTSC Ratio | 80% | sRGB | 98% coverage |
| Adobe RGB | 80% coverage | DCI-P3 | 83% coverage | |
| Rec.2020 | 60% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 1560(RGB)×700 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0495×0.1485 mm | Pixel Pitch(W×H) | 0.1485×0.1485 mm [171PPI] | |
| Physical Size : | Active Viewing | 231.66(W)×103.95(H) mm | Overall Dim. | 259.36(W)×131.32(H) mm |
| Bezel Opening | - | Overall Depth | 8.6/12.78 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | - | Shape Style | ||
| Touchscreen : | TP Controller | Without controller | Control Signal | - |
| Touch Points | 10 points | TP Technology | PCAP | |
| Other Detail : | Mass | 375±38g | Surface | Antiglare, Reflection 6.0% (Max.) |
| Panel Cover | With Cover Lens | |||
| Signal Electrical : | Input Current | 90/30/1.3/1.1mA (Typ.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/13.5/18/-8V (Typ.)(VDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH41-60S-0.5SH(05) | 1 pcs | 0.5 mm | 60 pins | ||
| Lamp Features: | Lamp Shape | 3 strings × 2CN | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3 strings × 2CN | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 100mA (Typ.) | Input Voltage | 19.32/21.42/24.44V (Min./Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 2 pcs | 10 pins | |||||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 231.66(W)×103.95(H) mm, outline size of 259.36(W)×131.32(H)×12.78(D) mm, with surface treament of Antiglare, Reflection 6.0% (Max.), net weight of 375±38g. As a AHVA, Normally Black, Transmissive LCM product, C100HAT01.0 can provides 940 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 83% (DCI-P3). This product adopted 3 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C100HAT01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3/13.5/18/-8V (Typ.)(VDD/AVDD/VGH/VGL)
