Product Details:
|
| Brand: | BOE | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 125PPI | Active Area: | 162(W)×121.5(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 75/75/75/75 (Typ.)(CR≥10) |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

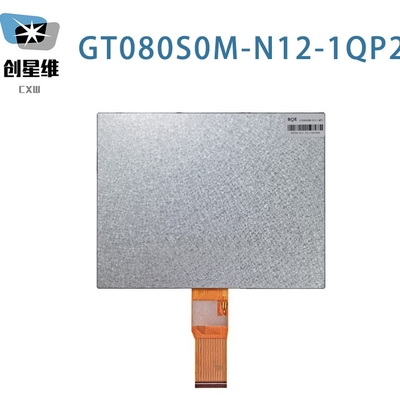

| Basic Information : | Brand | Model | GT080S0M-N12-1QP1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.0675×0.2025 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2025×0.2025 (H×V) [125PPI] | |
| Mechanical Size : | Active Area(mm) | 162(H) × 121.5(V) | Bezel Area(mm) | 164.85(H) × 124.24(V) |
| Outline Dim.(mm) | 183(H) × 141(V) | Depth(mm) | 3.4±0.25 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | - | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/75/75 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 20 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.314; Y:0.333 | Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6402K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 3.3/10/21/-7.78V (Typ.)(VDD/AVDD/VGH/VGL) | Current Supply | 120/30.5/0.5/4.21mA (Typ.)(IDD/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | DRGB-50P1C8B-115A | |||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S6P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 9.3/10.3V (Typ./Max.) | Current Supply | 140mA | ||
| Consumption | 1.3W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×3.65(D) mm, viewing area size of 164.85(W)×124.24(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, GT080S0M-N12-1QP1 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. GT080S0M-N12-1QP1 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10/21/-7.78V (Typ.)(VDD/AVDD/VGH/VGL
