Product Details:
|
| Diagonal Size: | 7.0" | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
|---|---|---|---|
| Active Area: | 153.6(W)×90(H) Mm | Luminance: | 350 Cd/m² (Typ.) |
| Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| Bezel Opening: | 156.4(W)×92.8(H) Mm |

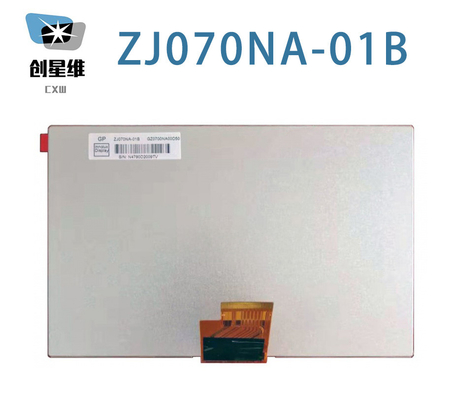

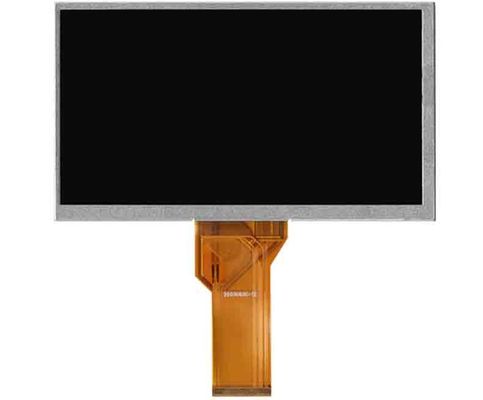

| Basic Information : | Brand | Model | ZJ070NA-01B | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 70 °C | Operating Temp. | -20 ~~ 60 °C |
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.050×0.150 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.150×0.150 (H×V) [169PPI] | |
| Mechanical Size : | Active Area(mm) | 153.6(H) × 90(V) | Bezel Area(mm) | 156.4(H) × 92.8(V) |
| Outline Dim.(mm) | 165.75(H) × 105.39(V) | Depth(mm) | 3.4±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 113g | Treatment | |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 10/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 0.35W (Typ.) | |||||
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S8P | Life Time | 20K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.3/10.2V (Typ./Max.) | Current Supply | 160/170mA (Typ./Max.) | ||
| Consumption | 1.5W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.75(W)×105.39(H)×3.6(D) mm, viewing area size of 156.4(W)×92.8(H) mm, net weight of 113g. As a TN, Normally White, Transmissive LCM product, ZJ070NA-01B can provides 350 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. ZJ070NA-01B utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
