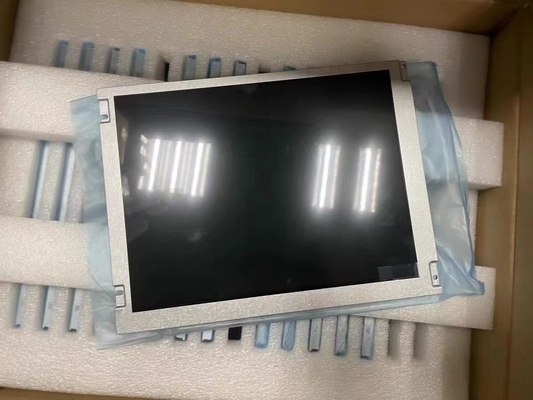

Product Details:
|
| Brand: | Chimei Innolux | Diagonal Size: | 5.6" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 143PPI | Active Area: | 112.896(W)×84.672(H) Mm |
| Brightness: | 350 Cd/m² (Typ.) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
| Input Voltage: | 3.3V (Typ.)(VCC) | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

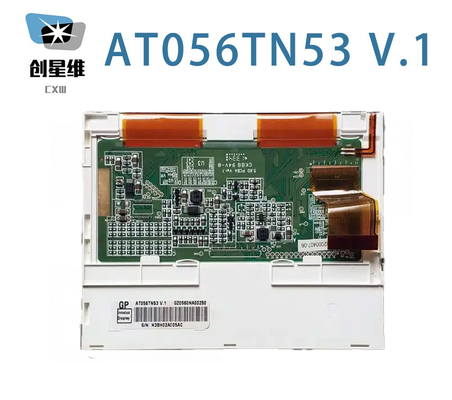

| Basic Information : | Brand | Model | AT056TN53 V.1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 5.6" | Alias | AT056TN53 V1 | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.0588×0.1764 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1764×0.1764 (H×V) [143PPI] | |
| Mechanical Size : | Active Area(mm) | 112.896(H) × 84.672(V) | Bezel Area(mm) | 115.90(H) × 87.67(V) |
| Outline Dim.(mm) | 126.5(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 83.1g (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 10/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.)(VCC) | Current Supply | 200/250mA (Typ./Max.)(ICC) | ||
|---|---|---|---|---|---|---|
| Consumption | 660mW (Typ.) | |||||
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-260B | |||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 20K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0±0.2V | Current Supply | 380/450mA (Typ./Max.) | ||
| Consumption | 1.90W (Typ.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 112.896(W)×84.672(H) mm, outline size of 126.5(W)×100(H)×6(D) mm, viewing area size of 115.90(W)×87.67(H) mm, with surface treament of Antiglare, net weight of 83.1g (Typ.). As a TN, Normally White, Transmissive LCM product, AT056TN53 V.1 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AT056TN53 V.1 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.)(VCC)
