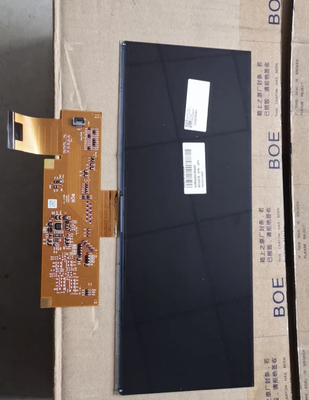

Product Details:
|
| Diagonal Size: | 12.3" | Resolution: | 1920(RGB)×720 167PPI |
|---|---|---|---|
| Active Area: | 292.032(W)×109.512(H) Mm | Outline Size: | 307.9(W)×130.27(H) Mm |
| Brightness: | 800 Cd/m² (Typ.) | Viewing Angle80/80/80/80 (Typ.)(CR≥10): | 80/80/80/80 (Typ.)(CR≥10) |
| Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Response: | 30 (Typ.) |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| AV123Z7M-N11 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -40 ~ 90 °C |
| Panel Size : | 12.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.0507×0.1521 mm | 0.1521×0.1521 mm [167PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 292.032×109.512 mm | 295.03×112.51 mm | 307.9×130.27 mm | 7.6 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 8:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting Pole (5 pcs) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 520±50g | |||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 800 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 90% | 70% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Power Consumption : | 10W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/6.27/-12/18V (Typ.)(VCC/AVDD/VGH/VGL) | 1.1W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RE41S-HF | 1 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 9S4P | 50K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 80mA (Typ.) | 27.9V (Typ.) | 8.9±1.1W | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | FH52-10S-0.5SH | 1 pcs | 0.5 mm | 10 pins | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.032(W)×109.512(H) mm, outline size of 307.9(W)×130.27(H) mm, viewing area size of 295.03(W)×112.51(H) mm, net weight of 520±50g. As a ADS, Normally Black, Transmissive LCM product, AV123Z7M-N11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AV123Z7M-N11 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 41 pins Connector with power supply voltage of 3.3/6.27/-12/18V (Typ.)(VCC/AVDD/VGH/VGL).
