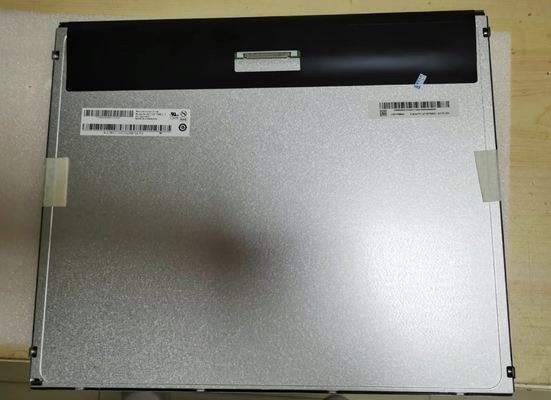

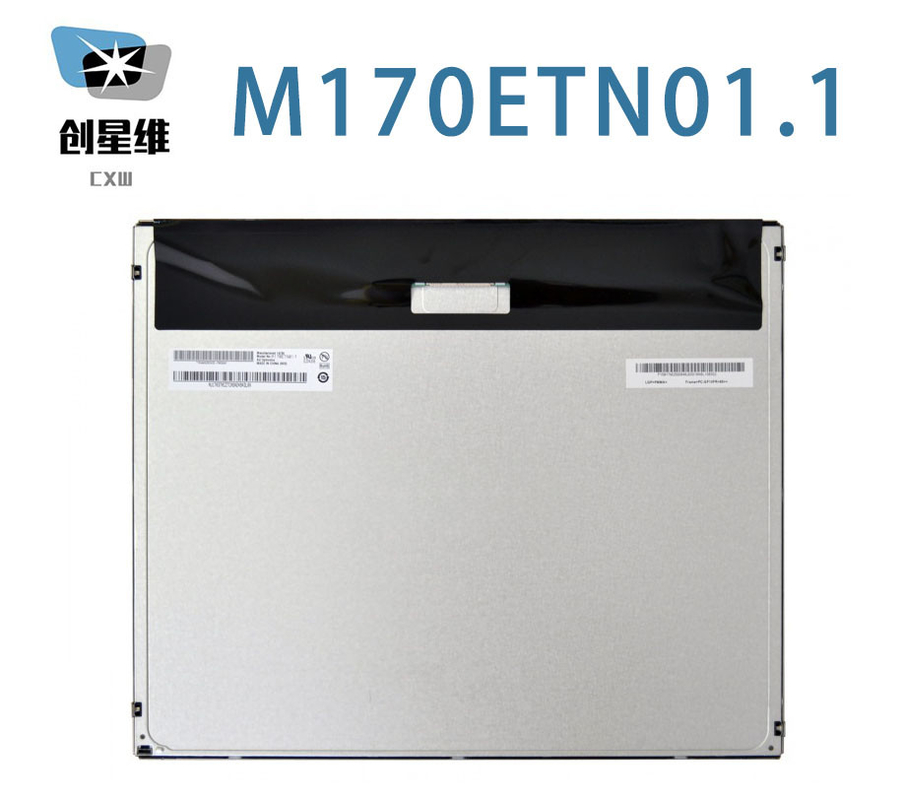

Product Details:
|
| Model: | M170ETN01.1 | Resolution: | 1280(RGB)×1024, SXGA 96PPI |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Luminance: | 250 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Backlight: | 9S4P WLED , 30K Hours , No Driver | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Voltage Supply: | 3.3V | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria
| Basic Info : | Panel Brand | Panel Model | M170ETN01.1 1 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 17.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | M170ETN01 V1 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 337.92×270.336 mm (H×V) | Bezel Area | 341.72×274.14 mm (H×V) |
| Outline Dim. | 358.5×296.5 mm (H×V) | Outline Depth | 7.7/10.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.27Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3.8/1.2 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 9S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 24.8±1.8V | Current Input | 45/49.5mA (Typ./Max.) | ||
| Consumption | 4.5/4.8W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3707K-S06N-21R | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.60/0.72A (Typ./Max.) | ||
| Consumption | 3.0/3.6W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSCKT2407P30HB | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
