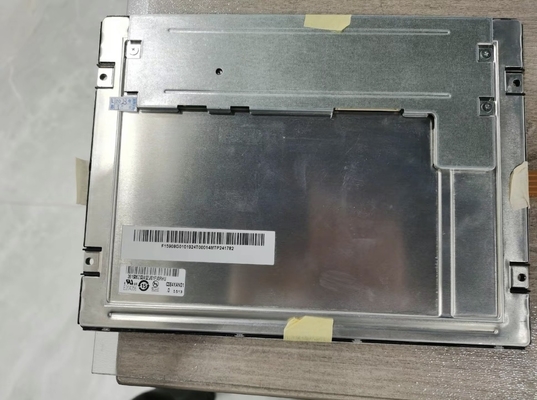

Product Details:
|
| Model: | C084XAN01.0 | Resolution: | 1024(RGB)×768, XGA 152PPI |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Luminance: | 1200 Cd/m² (Typ.) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Backlight: | WLED , 100K Hours , With LED Driver | Signal Type: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Voltage Supply: | 3.3V | Max. Ratings: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria
| Basic Information : | Brightness | 1200 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 16.7M (8-bit) |
| Color Temperature | - | White Uniformity | 1.18/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.0555×0.1665 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1665×0.1665 mm (H×V) [152PPI] | |
| Mechanical Size : | Display Area | 170.496×127.872 mm (H×V) | Bezel Area | 173.9×131.1 mm (H×V) |
| Outline Dim. | 199.4×149.4 mm (H×V) | Outline Depth | 10.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-Φ3.0), Face mounting holes (4-M2) | |||
| Other Features : | Weight | 350g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 100K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration  |
| HRS | DF14A-6P-1.25H | 1.25 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 10.8/12/12.6V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 10/11W (Typ./Max.) | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
