Product Details:
|

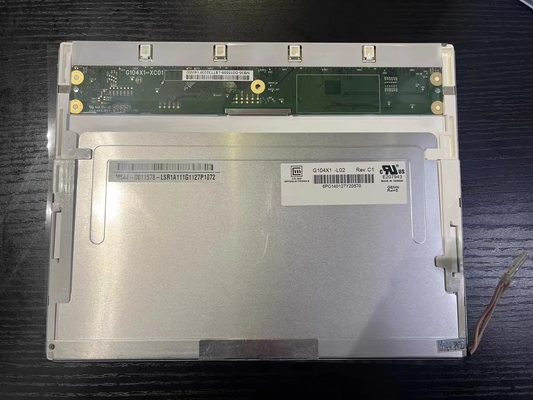

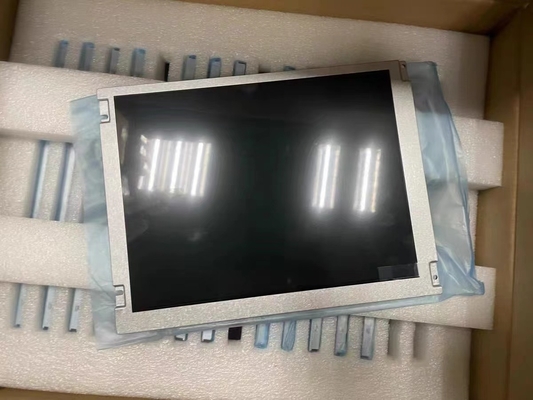

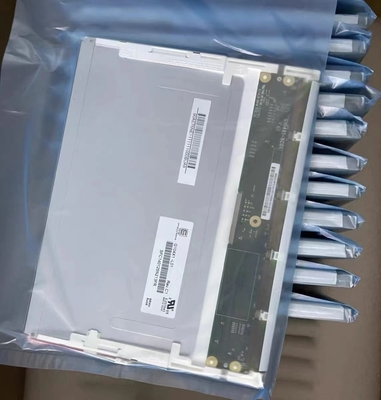

| Model: | G104X1-L02 | Resolution: | 1024(RGB)×768 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Contrast Ratio: | 1200 : 1 (Typ.) (TM) |
| Backlight: | 2 Pcs CCFL , 50K Hours , Without Driver | Signal Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
| Voltage Supply: | 3.3V | Max. Ratings: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | Super MVA, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 14/11 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5646K | 16.2M (6-bit + FRC) | X:0.329; Y:0.346 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 55% | 76% | 58% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 57% | 41% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : |
1.40 (Max.)(5 points)
|
||
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.0685×0.2055 mm | 0.2055×0.2055 mm [123PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 210.4×157.8 mm | 215.4×161.8 mm | 225.5×176.3 mm | 8.7/10.67 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 480g (Typ.) | Glare (Haze 0%), Hard coating (3H) | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | Straight | 2 pcs | 50K(Typ.) | Replaceable | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 7.6±0.5mA | 460.0V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 770/960V (Max.)(Ta=+25/0℃) | 45/80KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LHH | |
