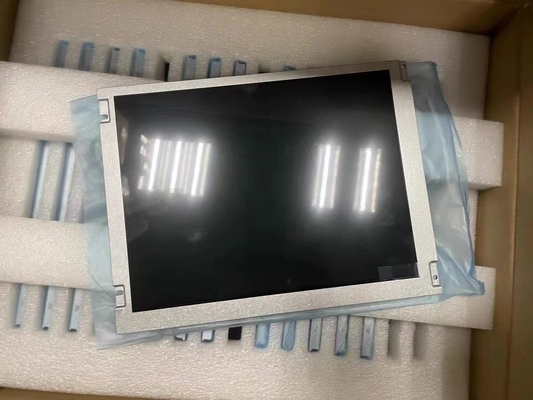

Product Details:
|
| Model: | G104S1-L01 | Resolution: | 800(RGB)×600, SVGA 96PPI |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10) | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Backlight: | WLED , 30K Hours , With LED Driver | Signal Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Voltage Supply: | 3.3V | Max. Ratings: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/70/70 (Typ.)(CR≥10) | 5/11 (Typ.)(Tr/Td) ms | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7620K | 262K/16.2M (6-bit / 6-bit + FRC) | Wx:0.292; Wy:0.334 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 53% | 72% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(5 points) | ||
| Screen Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm (H×V) | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm (H×V) | 243×184 mm (H×V) | 214.8×162.7 mm (H×V) | 7.0/7.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 355g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right slugs | |||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM10B-SHLS-TF | 1 pcs | 20 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±5.0V | - | - | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
