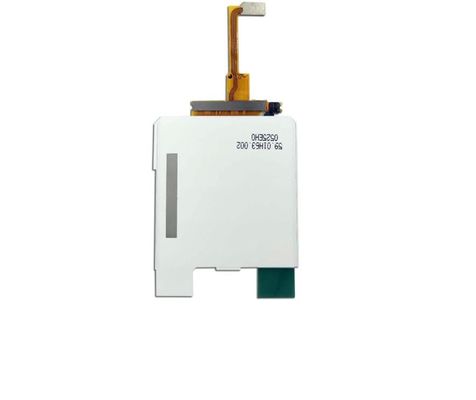

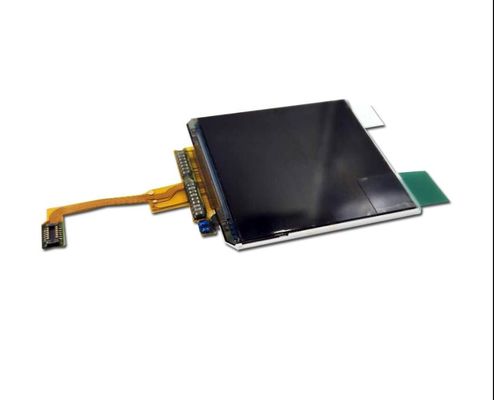

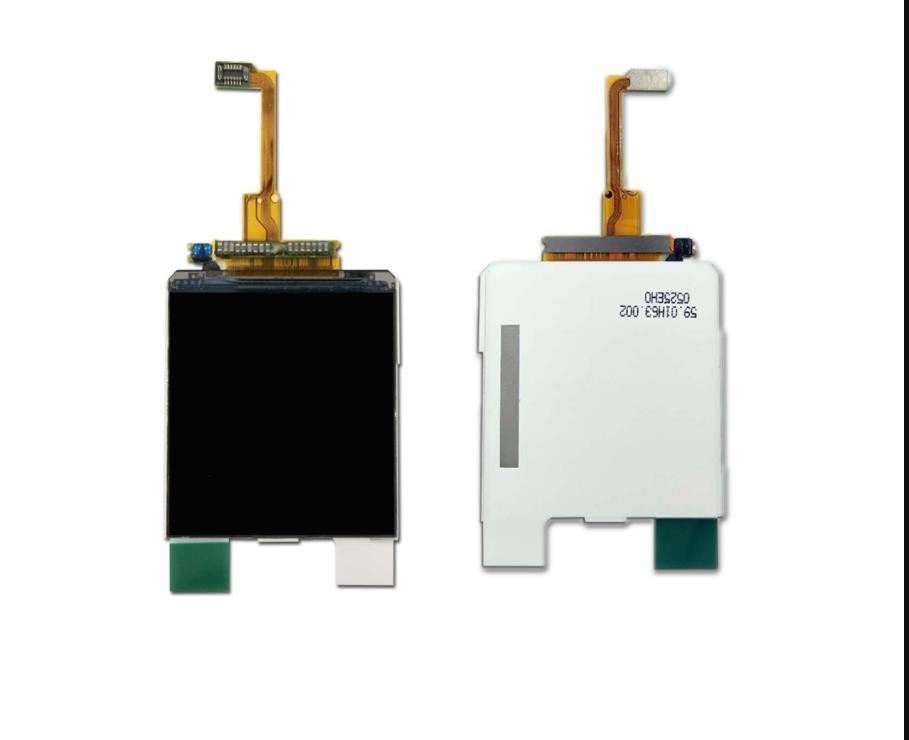

Product Details:
|
| MODEL NUMBER: | LH154Q01-TD01 | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 50/50/50/50 (Typ.)(CR≥10) | RESOLUTION: | 240(RGB)×240 219PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 450CD/M2 |
| SIZE: | 15.4 Inch | BRAND: | LG DISPLAY |
| Highlight: | 15.4" 240×240 Industrial Lcd Display,450cd/m2 Industrial Lcd Display,219PPI Tft Lcd Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LH154Q01-TD01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C |
| Screen Size : | 1.54" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×240 | RGB Vertical Stripe | 0.0385×0.1155 mm | 0.1155×0.1155 mm [219PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 27.72×27.72 mm | - | 31.82×33.72 mm | 1.147 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 1:1 | Landscape type | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | ECB, Normally White, Transmissive | 150:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6:30 o'clock | 50/50/50/50 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6753K | 262K (6-bit) | X:0.309; Y:0.324 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 71% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 5S1P | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 15.5/17.0V (Typ./Max.) | 10.5/25.0mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/1.8V (Typ.)(VDD/VEE) | - | 20/25mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (1 data lane) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 503552-1220 | 1 pcs | 12 pins | 0.4 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 500 pcs / box | - | 475×348×210 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
