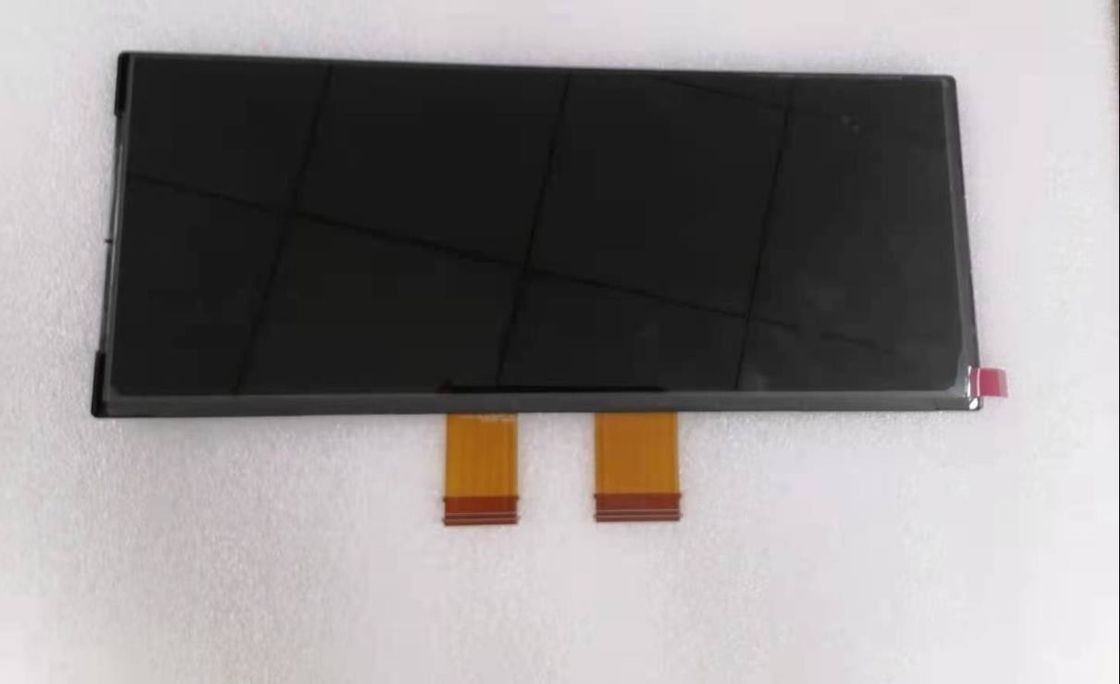

Product Details:
|
| MODEL NUMBER: | LA123WF1-SR03 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 600CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720, 167PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | 600cd/M2 Square Tft Display,167PPI Square Tft Display,RSDS Industrial Lcd Panel |
||
| Basic Information : | Brand | Model | LA123WF1-SR03 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.3" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -40 ~~ 85 °C |
| RoHS | Vibration | 3.0G (29.4 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×720 | Dot Pitch(mm) | 0.0507×0.1521 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1521×0.1521 (H×V) [167PPI] | |
| Mechanical Size : | Active Area(mm) | 292.032(H) × 109.512(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 310(H) × 128(V) | Depth(mm) | 8.2/16.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 395/405g (Typ./Max.) | Treatment | Antiglare, Hard coating |
| Basic Information : | Luminance(cd/m²) | 600 (Min.) | Contrast Ratio | 800:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Max.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 86% | sRGB | 99% coverage |
| Adobe RGB | 83% coverage | DCI-P3 | 89% coverage | |
| Rec.2020 | 65% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3/13V (Typ.)(VCC/VDD) | Current Supply | 130/140mA (Max.)(ICC/IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | RSDS (2 Channel) | Signal Voltage | - | |||

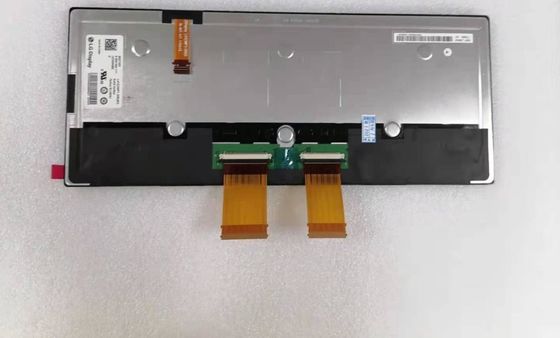

| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 60 pins | 0.5 mm | ||||
| 1 pcs | 50 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 11S4P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 27.5/31.6/35.7V (Min./Typ./Max.) | Current Supply | 90mA (Typ.) | ||
| Consumption | 9.2/11.38/14.1W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 20 pins | 0.5 mm | ||||
| Backlight Driver : | No | |||||

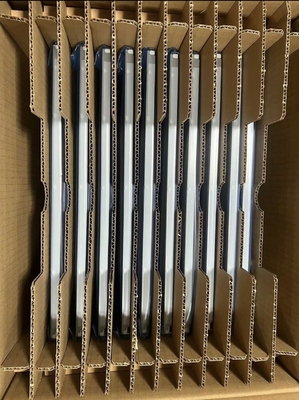

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 36 pcs / box | - | 1190×790×1033 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
