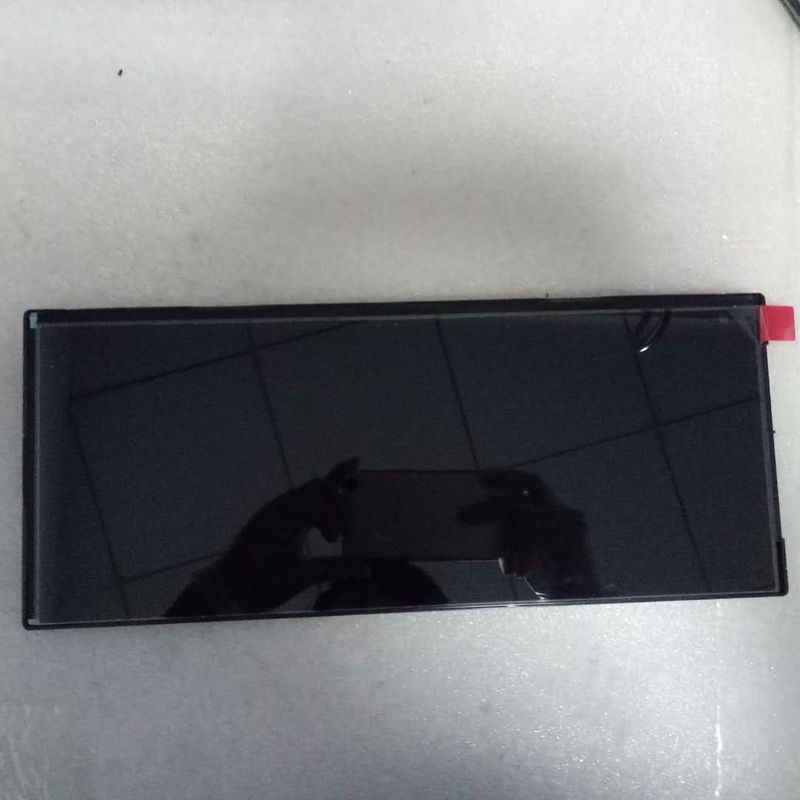

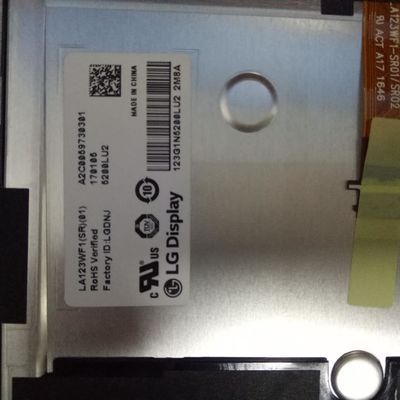

Product Details:
|
| MODEL NUMBER: | LA123WF1-SR01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 600CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720 167PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | 600cd/m2 LCM TFT LCD Panel,12.3" LCM TFT LCD Panel,167PPI Square Tft Display |
||
| Basic Detail : | Manufacturer | Model Name | LA123WF1-SR01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 12.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -40 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 3.0G (29.4 m/s²) |
| Basic Information : | Luminance | 600 cd/m² (Min.) | Contrast Ratio | 800 : 1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 86% | sRGB | 99% coverage |
| Adobe RGB | 83% coverage | DCI-P3 | 89% coverage | |
| Rec.2020 | 65% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×720 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0507×0.1521 mm | Pixel Pitch(W×H) | 0.1521×0.1521 mm [167PPI] | |
| Physical Size : | Active Viewing | 292.032(W)×109.512(H) mm | Overall Dim. | 310(W)×128(H) mm |
| Bezel Opening | - | Overall Depth | 8.2/11.05 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Other Detail : | Mass | 390/405g (Typ./Max.) | Surface | Hard coating |
| Signal Electrical : | Input Current | 100/130mA (Max.)(ICC/IDD) | Input Voltage | 3.3/13.0V (Typ.)(VCC/VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | RSDS (2 Channel) | |||

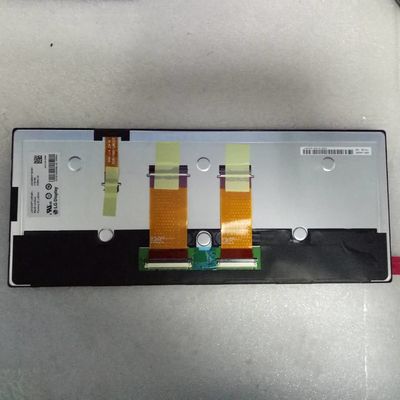

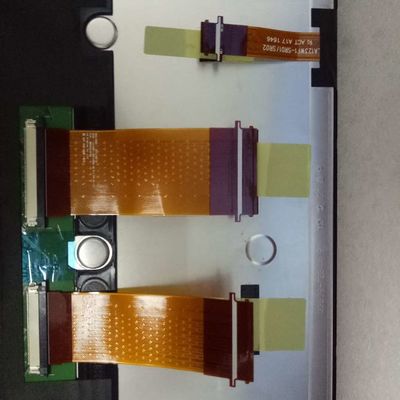

| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 8S6P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80±5.0mA | Input Voltage | 23.6±3.1V | ||
| Consumption | 9.0/11.3/14.13W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 20 pins | ||||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 36 pcs / box | 1140×990×1105 mm | - |
