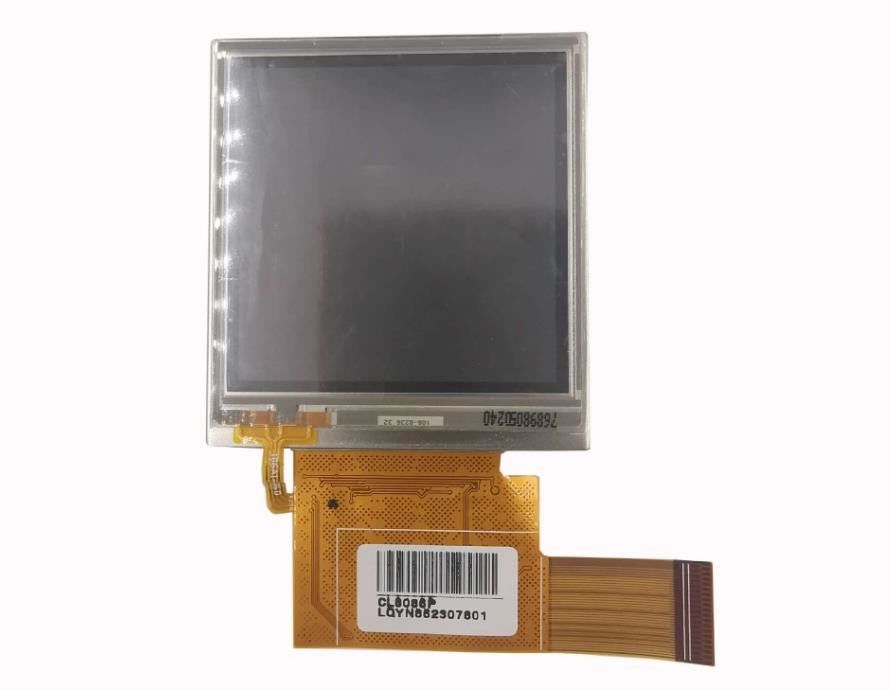

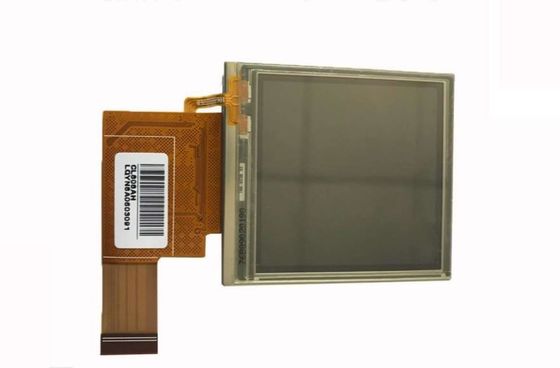

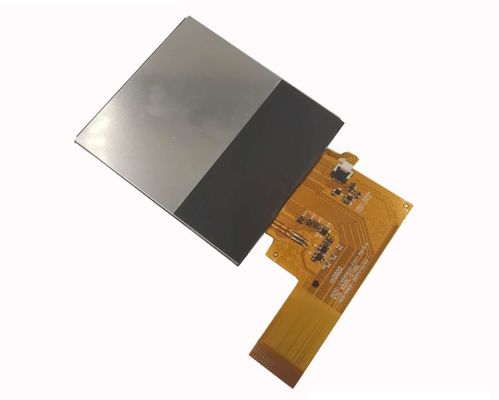

Product Details:
|
| MODEL NUMBER: | LH220Q32-FD01 | Signal Interface: | Parallel RGB , 39 Pins FPC |
|---|---|---|---|
| VIEWING ANGLEG: | 45/45/40/50 (Typ.)(CR≥5) | RESOLUTION: | 320(RGB)×320, 206PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 160CD/M2 |
| SIZE: | 2.2 Inch | BRAND: | LG DISPLAY |
| High Light: | 320×320 NTSC Industrial Lcd Display,160cd/M2 Industrial Lcd Display,206PPI FPC Industrial Tft Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LH220Q32-FD01 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 160 (Typ.) | 45/45/40/50 (Typ.)(CR≥5) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transflective | 120 : 1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8188K | 65K | X:0.290; Y:0.313 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 67% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(9 points) | ||
| Transmissivity : | 3.5% (Typ.)(with Polarizer) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | ||
| Panel Size : | 2.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×320 | RGB Vertical Stripe | 0.123×0.123 [206PPI] | 0.041×0.123 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 39.36(H) × 39.36(V) | - | 47.4(H) × 51.85(V) | 3.5/3.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 1:1 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| - | - | - | 4-wire Resistive Touch | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 18.0g (Typ.) | - | Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.6/10.5V (Typ./Max.) | 13/30mA (Typ./Max.) | 125/137W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.0V (Typ.) | 12.0/19.5mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 39 pins | 1 pcs | |||||
