800×600 WLED RGB 400cd/M2 Industrial Lcd Panel LB121S03-TL04 SVGA 82PPI

800×600 WLED RGB 400cd/M2 Industrial Lcd Panel LB121S03-TL04 SVGA 82PPI
800×600 WLED RGB 400cd/M2 Industrial Lcd Panel LB121S03-TL04 SVGA 82PPI 800×600 WLED RGB 400cd/M2 Industrial Lcd Panel LB121S03-TL04 SVGA 82PPI

Large Image :  800×600 WLED RGB 400cd/M2 Industrial Lcd Panel LB121S03-TL04 SVGA 82PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LB121S03-TL04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 2000PCS
Contact Now

800×600 WLED RGB 400cd/M2 Industrial Lcd Panel LB121S03-TL04 SVGA 82PPI

Description
MODEL NUMBER: LB121S03-TL04 BRAND: LG DISPLAY
SIZE: 12.1INCH BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 800(RGB)×600 (SVGA) 82PPI
VIEWING ANGLEG: 70/70/55/65 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C
High Light:

800×600 WLED Industrial Lcd Panel

,

RGB 400cd/M2 Industrial Lcd Panel

,

SVGA 82PPI Square Tft Display

LG Display LB121S03-TL04 Application Details

Basic Detail :
Manufacturer

LB121S03-TL04Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LB121S03 (TL)(04)
Panel Size
12.1 inch
Designed For
Maximum Ratings :
OP Temperature
-10 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

1.0G (9.8 m/s²)Vibration Level



LG Display LB121S03-TL04 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.1025×0.3075 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.3075×0.3075 (H×V) [82PPI]
Mechanical Size :
Active Area(mm)
246(H) × 184.5(V)
Bezel Area(mm)
-
Outline Dim.(mm)
276(H) × 209(V)
Depth(mm)
10.6 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-Φ3.4) on left, right bezel
Other Spec :
Weight
600g (Max.)
Treatment
Antiglare



LG Display LB121S03-TL04 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
70/70/55/65 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
10/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.305; Wy:0.320
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
7037K
White Uniformity
1.25/1.45 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
95% coverage
Adobe RGB
73% coverage
DCI-P3
73% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LB121S03-TL04 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
240/290mA (Typ./Max.)
Consumption
0.80/0.96W (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-XB30SL-HF10
1.0 mm
30 pins
1 pcs



LG Display LB121S03-TL04 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
350/400mA (Typ./Max.)
Consumption
4.2/5.0W (Typ./Max.)

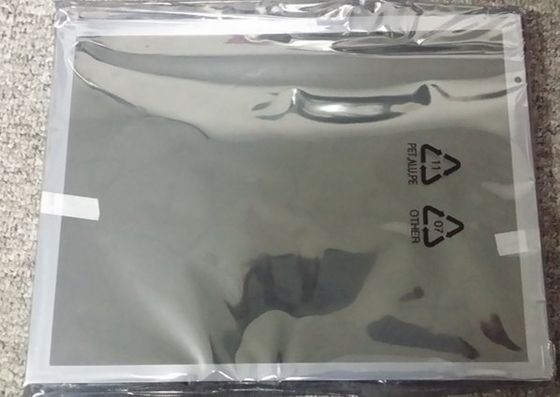

LG Display LB121S03-TL04 Packing Details

Package Box : Quantity Weight Box Size
16 pcs / box - 425×328×350 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
