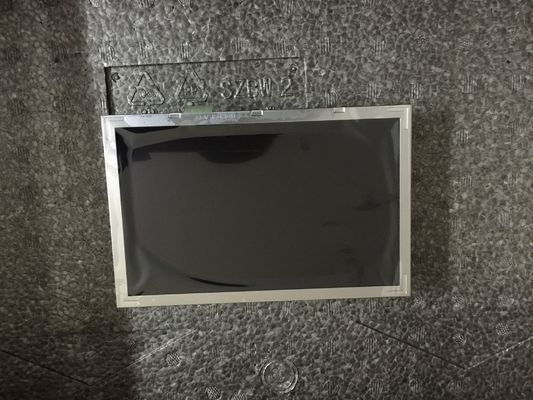

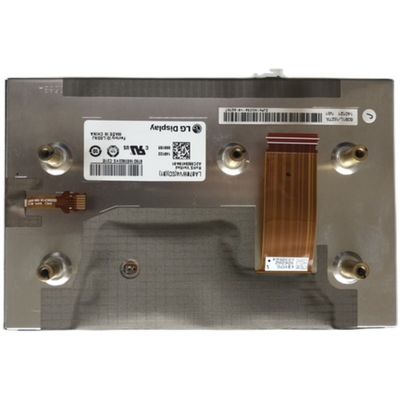

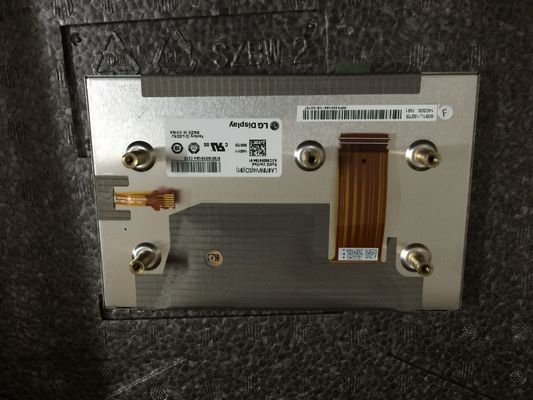

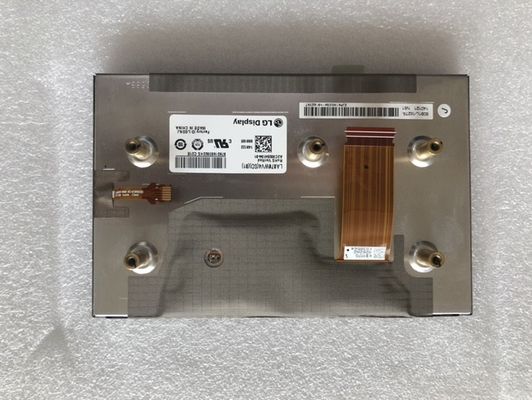

Product Details:
|
| MODEL NUMBER: | LA070WV4-SD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 470CD/M2 |
| RESOLUTION: | 800(RGB)×480 [WVGA] 133PPI | VIEWING ANGLEG: | 70/70/70/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: -40 ~ 90 °C ; Storage Temperature: -40 ~ 105 °C ; Vibration Level: 3.0G (29.4 M/s²) | Lamp Type: | WLED |
| High Light: | 470cd/m2 TFT LCD Panel,133PPI WVGA TFT LCD Panel,800×480 SRGB Industrial Lcd Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LA070WV4-SD01 | a-Si TFT-LCD , LCM | LA070WV4 (SD)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 90 °C | -40 ~ 105 °C | 3.0G (29.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 470 (Typ.) | 70/70/70/70 (Typ.)(CR≥10) | 15/10 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 900 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6482K | 262K (6-bit) | X:0.312; Y:0.336 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 65% | 84% | 66% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.11/1.25 (Typ./Max.)(9 points) | ||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | 156.5(H) × 95.55(V) | 170(H) × 109.6(V) | 9.2 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Rear mounting holes (5-M3) on pole | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 256/261g (Typ./Max.) | - | Antiglare (Haze 11%) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7S2P | 2 strings | 20K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 19.3/21.4/23.5V (Min./Typ./Max.) | 80/85mA (Typ./Max.) | 3.42W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 1.0 mm | 6 pins | 1 pcs | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 150/230/310mA (Min./Typ./Max.) | 0.86W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 572×372×166 mm (L×W×H) |
