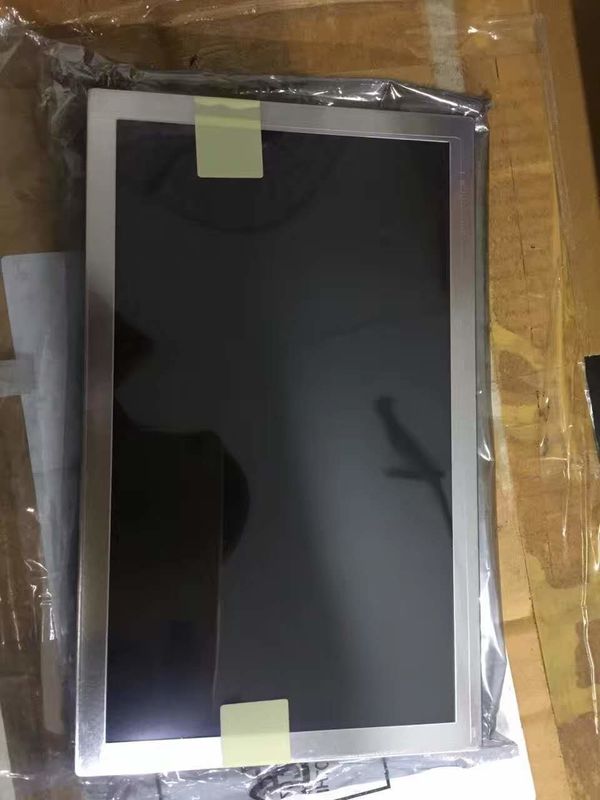

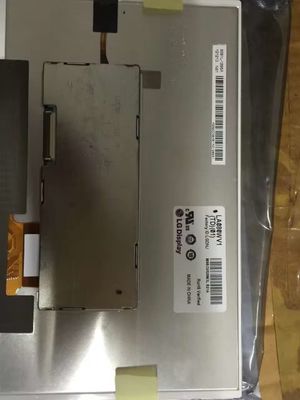

Product Details:
|
| MODEL NUMBER: | LA080WV1-TD01 | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 70 °C ; Vibration Level: 2.84G (27.8 M/s²) |
|---|---|---|---|
| VIEWING ANGLEG: | 70/70/50/60 (Typ.)(CR≥10) | RESOLUTION: | 800(RGB)×480 (WVGA) 116PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 700CD/M2 |
| SIZE: | 8.0INCH | BRAND: | LG DISPLAY |
| Highlight: | WVGA 116PPI Square Tft Display,Square Tft Display 700cd/M2,5.7W LCM Tft Lcd Screen |
||
| Basic Detail : | Manufacturer | Model Name | LA080WV1-TD01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LA080WV1 (TD)(01) | |
| Panel Size | 8.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 70 °C | ST Temperature | -30 ~ 85 °C |
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 5/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.320 | Support Color | 262K (6-bit) |
| Color Temperature | 7037K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 82% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0736×0.2070 mm | Pixel Pitch(W×H) | 0.2208×0.2070 mm [116PPI] | |
| Physical Size : | Active Viewing | 176.64(W)×99.36(H) mm | Overall Dim. | 199(W)×121(H) mm |
| Bezel Opening | 180.8(W)×103.4(H) mm | Overall Depth | 7.2/11.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 270/280g (Typ./Max.) | Surface | Antiglare, Reflection 4.0% (Typ.) |
| Signal Electrical : | Input Current | 95/139/185mA (Min./Typ.Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.7W (Typ.) | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH12K-40S-0.5SH | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 235/475/715mA (Min./Typ./Max.) | Input Voltage | 9.0/12.0/16.0V (Min./Typ./Max.) | ||
| Consumption | 5.7W (Typ.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 28 pcs / box | 475×262×182 mm |
