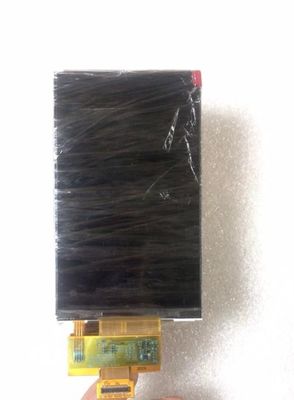

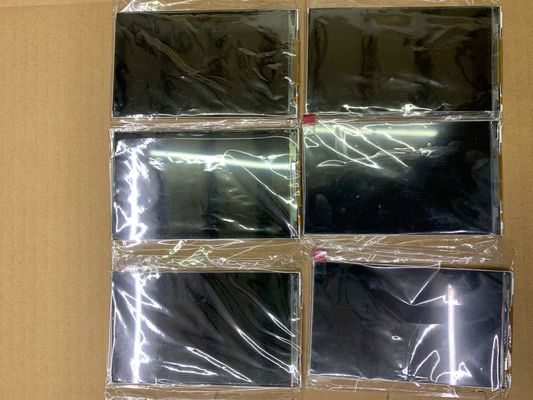

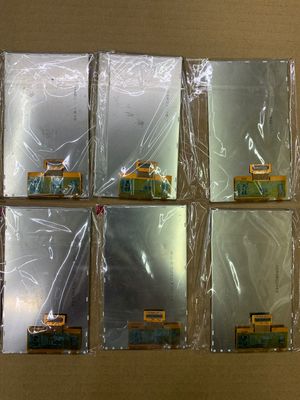

Product Details:
|
| MODEL NUMBER: | LB043WV2-SD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 4.3 Inch | BRIGHTNESS: | 600CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 480(RGB)×800 (WVGA) 217PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | 480×800 WLED TFT LCD Panel,600cd/M2 WVGA TFT LCD Panel,217PPI Industrial Tft Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LB043WV2-SD01 | a-Si TFT-LCD , LCM | LB043WV2 (SD)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 40 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 91% | 70% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×800 [WVGA] | RGB Vertical Stripe | 0.117×0.117 [217PPI] | 0.039×0.117 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 56.16(H) × 93.6(V) | - | 60.06(H) × 102.97(V) | 1.95±0.15 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:5 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 32.5±3.3g | ||||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 5S2P | 2 strings | 15K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 20mA (Typ.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/2.8/2.8V (Typ.)(IOVCC/VCC/VCI) | - | 106.4/198mW (Typ./Max.) | ||||
| Voltage for Display Signals : | -0.3≤VIL≤0.2IOVCC; 0.8IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) + SPI | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GB042-50P-H10-E3000 | 0.4 mm | 50 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
