9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI

9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI

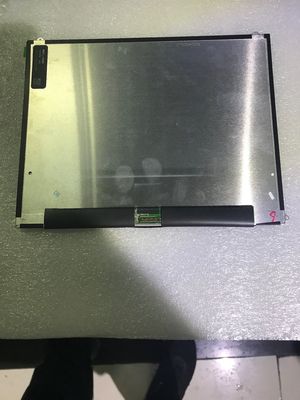

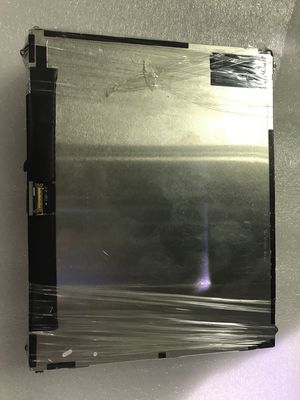

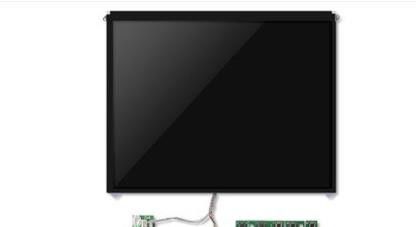

9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI 9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI 9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI

Large Image :  9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP097X02-SLQ1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 2000PCS
Contact Now

9.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI

Description
MODEL NUMBER: LP097X02-SLQ1 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) RESOLUTION: 1024(RGB)×768, XGA, 132PPI
Lamp Type: WLED BRIGHTNESS: 400CD/M2
SIZE: 9.7INCH BRAND: LG DISPLAY
High Light:

1024×768 RGB Square LCD Panel

,

400cd/m2 Square LCD Panel

,

XGA 132PPI Square Tft Screen

LG Display LP097X02-SLQ1 Application Details

Basic Info :
Panel Brand

LP097X02-SLQ19.7 Inch 1024×768 RGB 400cd/M2 Square LCD Panel LP097X02-SLQ1 XGA 132PPI 0 4 CompatiblePanel Model
Diagonal Size
9.7"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP097X02 (SL)(Q1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LP097X02-SLQ1 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.064×0.192 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.192×0.192 mm (H×V) [132PPI]
Mechanical Size :
Display Area
196.608×147.456 mm (H×V)
Bezel Area
201.01×151.86 mm (H×V)
Outline Dim.
210.32×164.37 mm (H×V)
Outline Depth
2.88/5.22 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4 pcs) on left, right, down slugs
Other Features :
Weight
143g (Max.)
Surface
Glare (Haze 0%), Hard coating (2H), Antireflection



LG Display LP097X02-SLQ1 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
H-IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
35 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.309; Wy:0.317
Color Numbers
262K (6-bit)
Color Temperature
6830K
Uniformity
1.40/1.60 (Typ./Max.)(17 points)
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP097X02-SLQ1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
6S6P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
6 strings
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



LG Display LP097X02-SLQ1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
212/244mA (Typ./Max.)
Consumption
0.7/0.81W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20525-030E-02
0.4 mm
30 pins
1 pcs
LVDS-30P1C6B-070F





LG Display LP097X02-SLQ1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
30 pcs / box - 478×365×328 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
